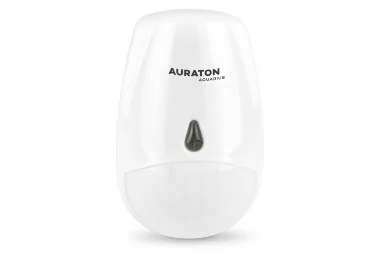

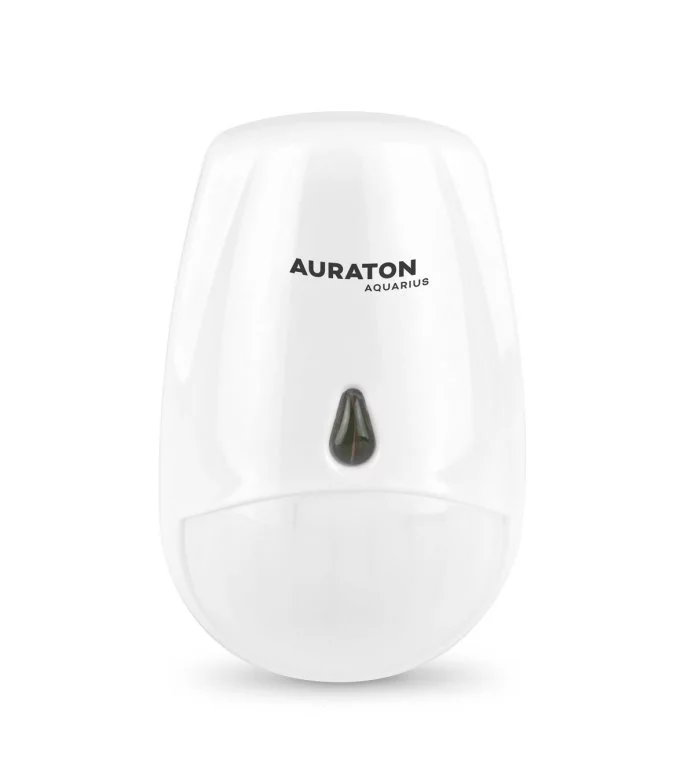

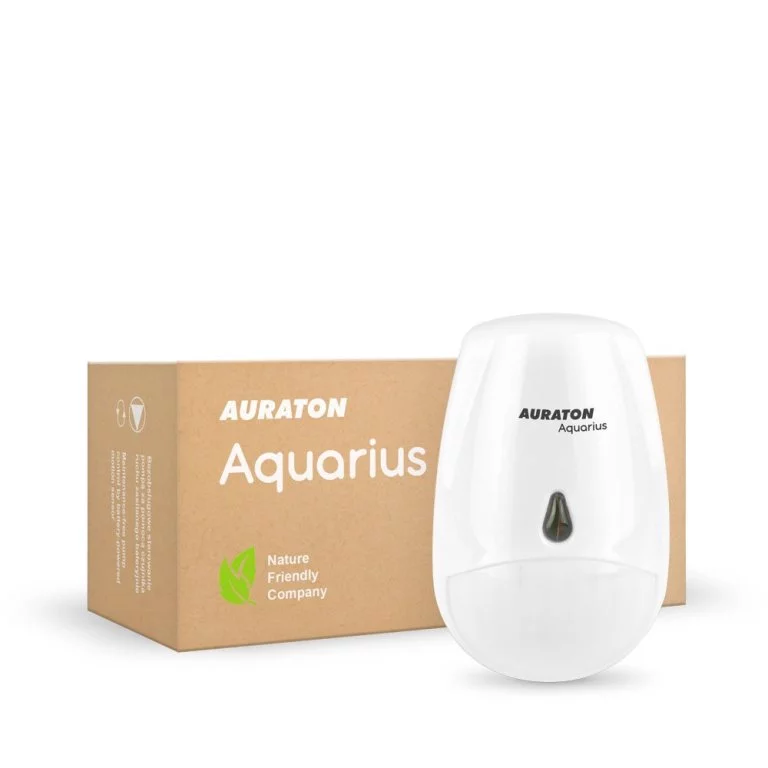

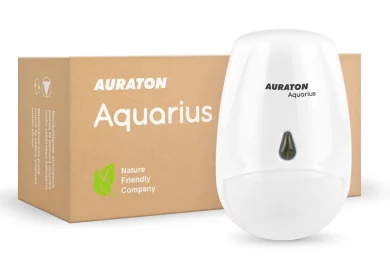

AURATON Aquarius PIR

Wireless motion sensor controlling circulation pump in the DHW system (transmitter)

AURATON Aquarius PIR (the successor to AURATON PIR) is a wireless motion sensor designed for automatic control of the circulation pump in a domestic hot water (DHW) system. Its primary function is to detect user activity. When the PIR sensor detects movement in the bathroom, it transmits a signal to the receiver, which activates the hot water circulation. This solution allows hot water to be turned on only when it is needed, leading to real savings and increased user comfort. The AURATON Aquarius PIR sensor can be easily mounted on the wall in bathrooms, homes, or offices. The sensor does not collect user data, but only detects movement, making it also frequently used in public facilities.

Are you interested in this product?

Where to buy

Designed to work with AURATON Aquarius CR and AURATON Aquarius SET

Battery powered

Maintenance-free pump control by means of a motion sensor

Up to 20 motion sensors can be paired with one AURATON Aquarius CR receiver

Battery-powered PIR sensor for convenience and quick installation

The AURATON Aquarius PIR motion sensor is battery-powered, eliminating the need for complex electrical installation and making it easy to install. The sensor is small and can be easily mounted on a wall or ceiling.

Compatibility with AURATON Aquarius CR and SET

AURATON Aquarius PIR is designed to work with the AURATON Aquarius CR receiver and the AURATON Aquarius SET. This enables the creation of an advanced hot water circulation management system that adapts to user needs and ensures maximum energy savings and user comfort.

Technical data

Power supplyCR123A 3V lithium battery (included)
replaceable battery
Operating temperature range0 - 40°C
Working cycledaily
Radio frequency868,850 MHz
869,000 MHz
Radio signal strengthup to 11 dBm
Operating rangeIn a typical building with a standard wall
construction – approx. 30 m; in an open space
– up to 300 m
Working status signallingLED
Ingress protectionIP 20
Humidity≤85% non-condencing
