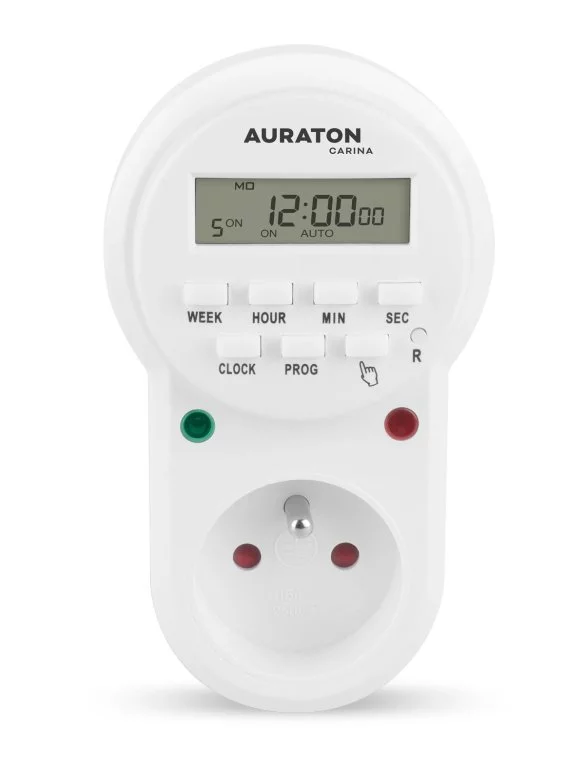

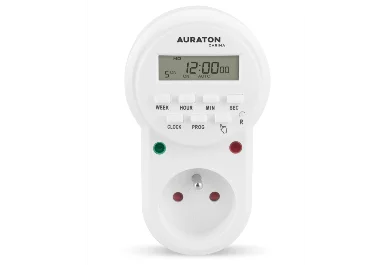

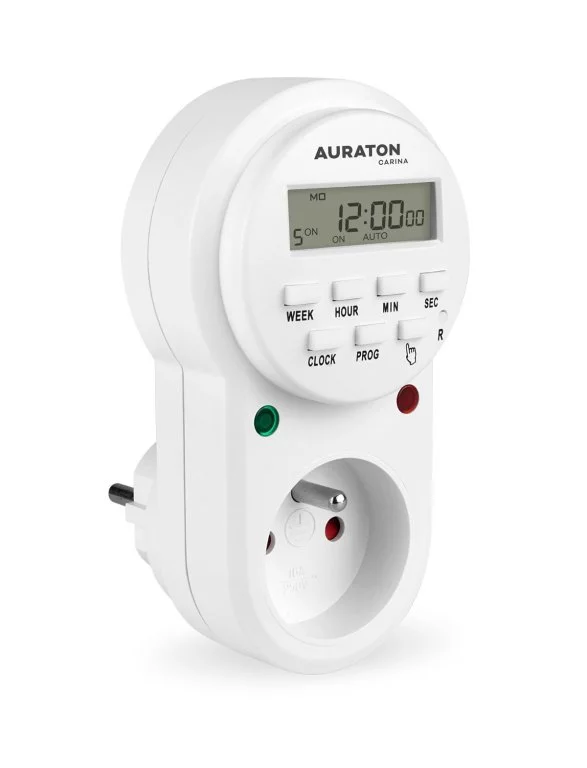

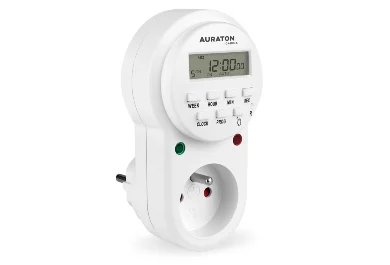

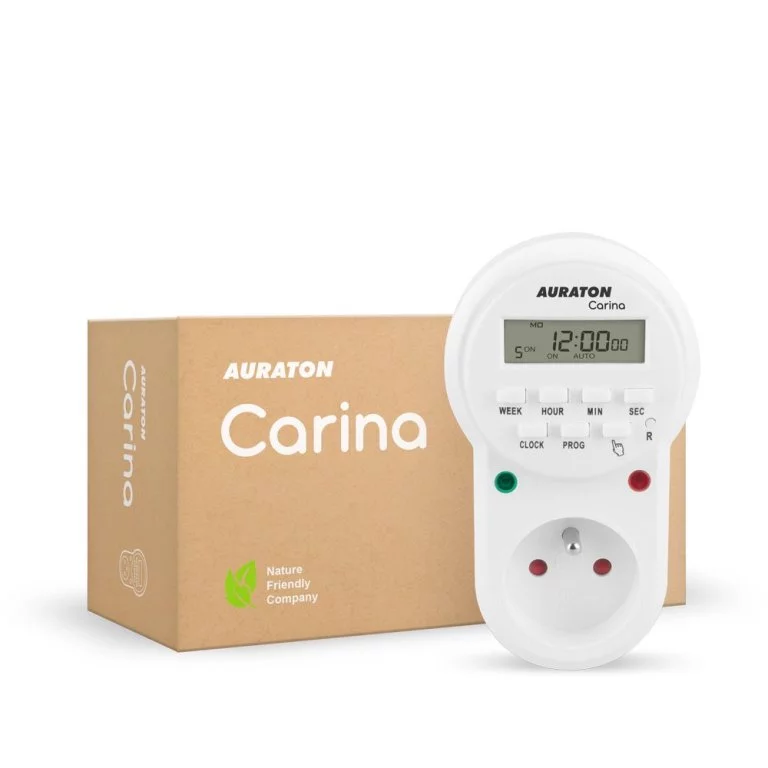

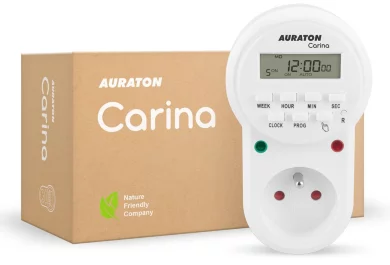

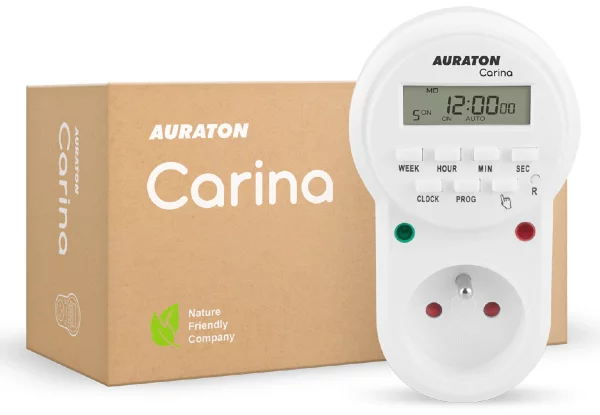

AURATON Carina
Weekly multifunctional timer switch
AURATON Carina (successor to AURATON 100) is an advanced, multi-functional weekly timer, designed to control the domestic hot water (DHW) pump in a circulation system. Thanks to its versatility, it can also control any device with a voltage of 230 V AC and a maximum current of 16 A. Its wide programming possibilities make it an ideal solution for many household applications.
Are you interested in this product?
Where to buy
Stores the screen status and programmes after power failure (for about a week)
On/Off programmes: 8 daily and up to 56 weekly programmes
Random and manual on/off function
Control via electric socket (available in the E or F versions)
Precise scheduling with a socket timer
The AURATON Carina socket programmer has eight daily programs and up to 56 repeating on/off programs per week, with an accuracy of 1 second. This allows for precise adjustment of device operation to the daily schedule of household members. The operation of connected devices can be regulated depending on the day of the week and presence at home, ensuring maximum efficiency and user convenience.
Enhanced home security with random mode
One of the unique features of AURATON Carina is the random operation mode. This function involves random switching on and off of devices, simulating the presence of people in the house. It is an ideal solution that increases security, for example by turning on a night light during the absence of residents.
Time programmer with memory retention after a power outage
AURATON Carina has been designed for reliability. In the event of a power outage, the device retains the screen display and programmed settings for about a week. Thanks to this, users can be sure that their schedules will remain intact, even in the event of power interruptions.
Technical data
| Power supply | 230V AC, 50Hz, 1.5W |
| Operating temperature range | 0 – 50°C |
| Working cycle | weekly |
| Load | max. 16A (res), max. 6A (ind) |
| Memory backup | approx. 1 week |
| Ingress protection | IP 20 |
| Humidity | ≤85% non-condensing |
| Suggested mounting place | electric socket |
| Socket type | E or F |
| Plug type | E or F |
