AURATON Multizone Controller

Smart Home (16)

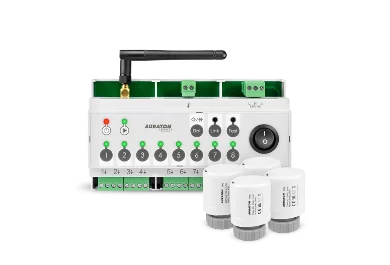

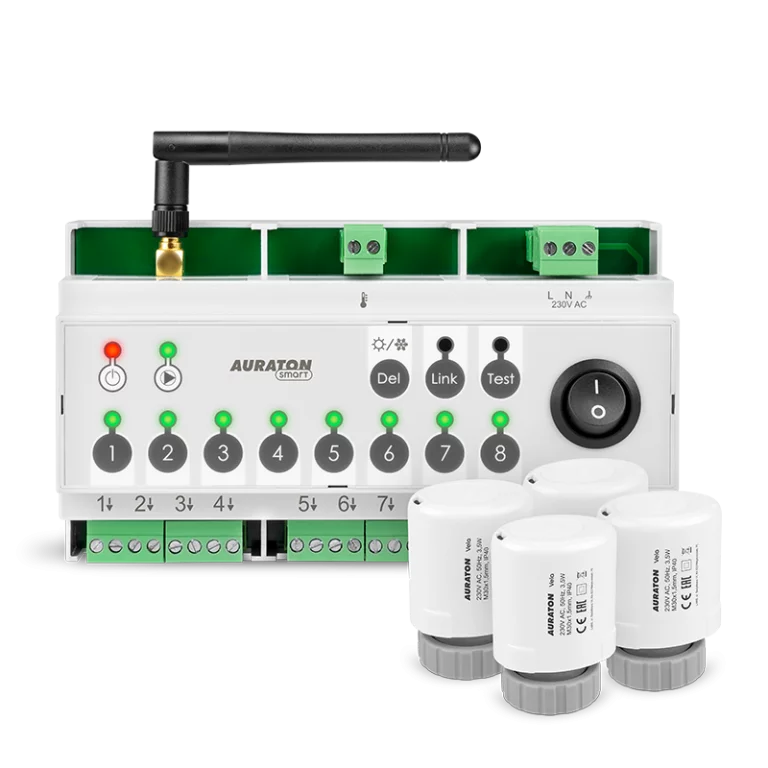

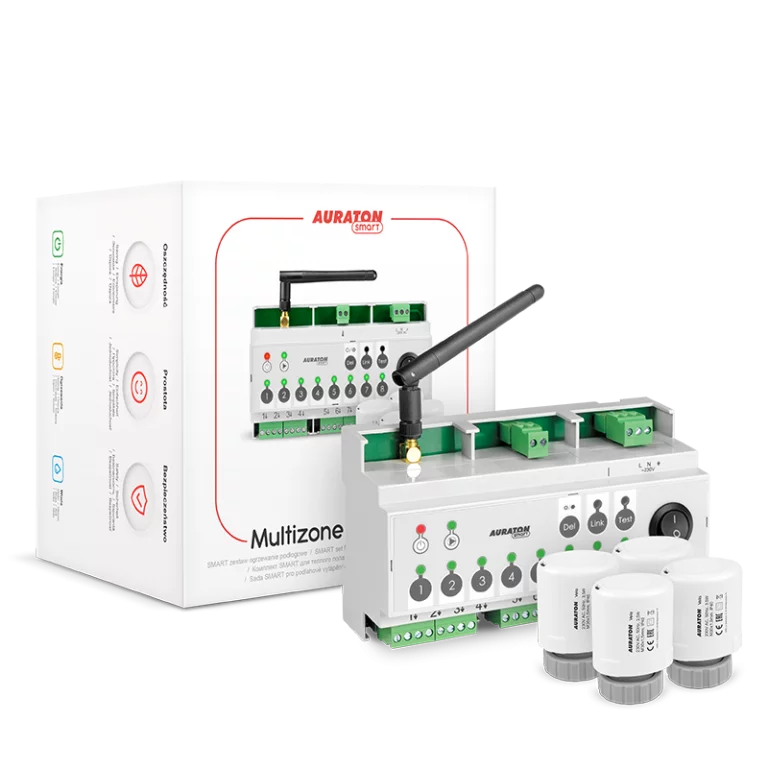

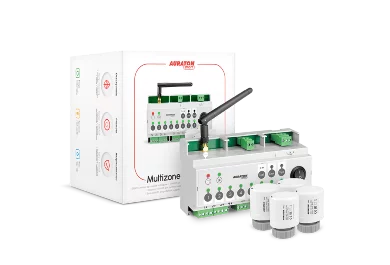

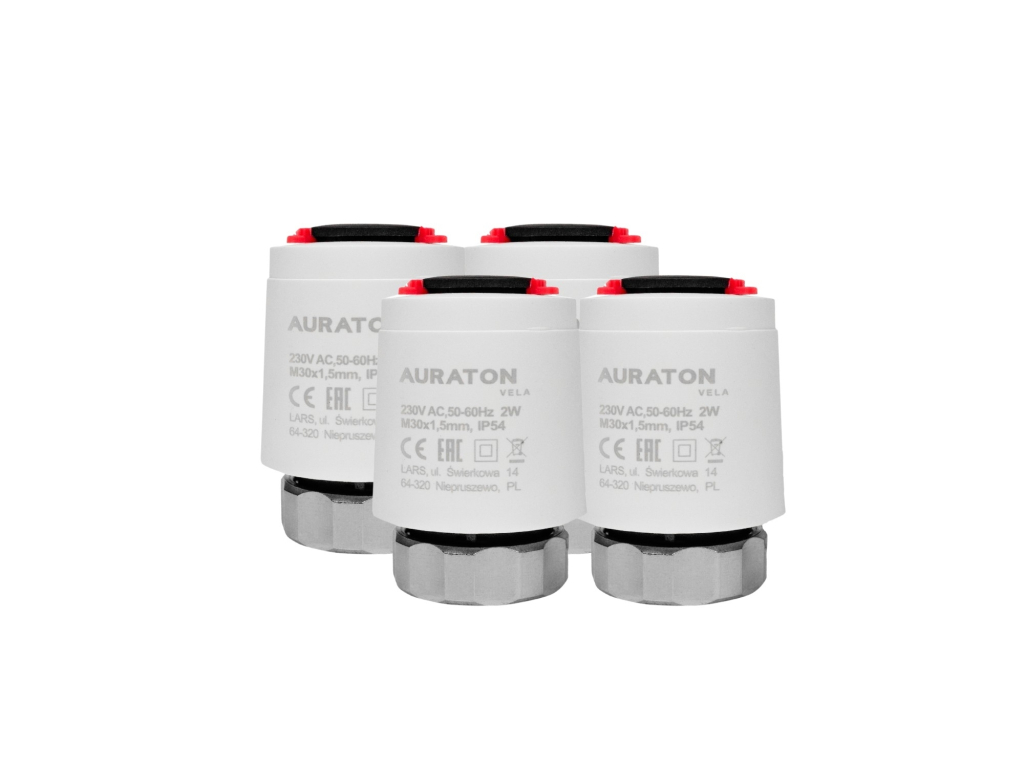

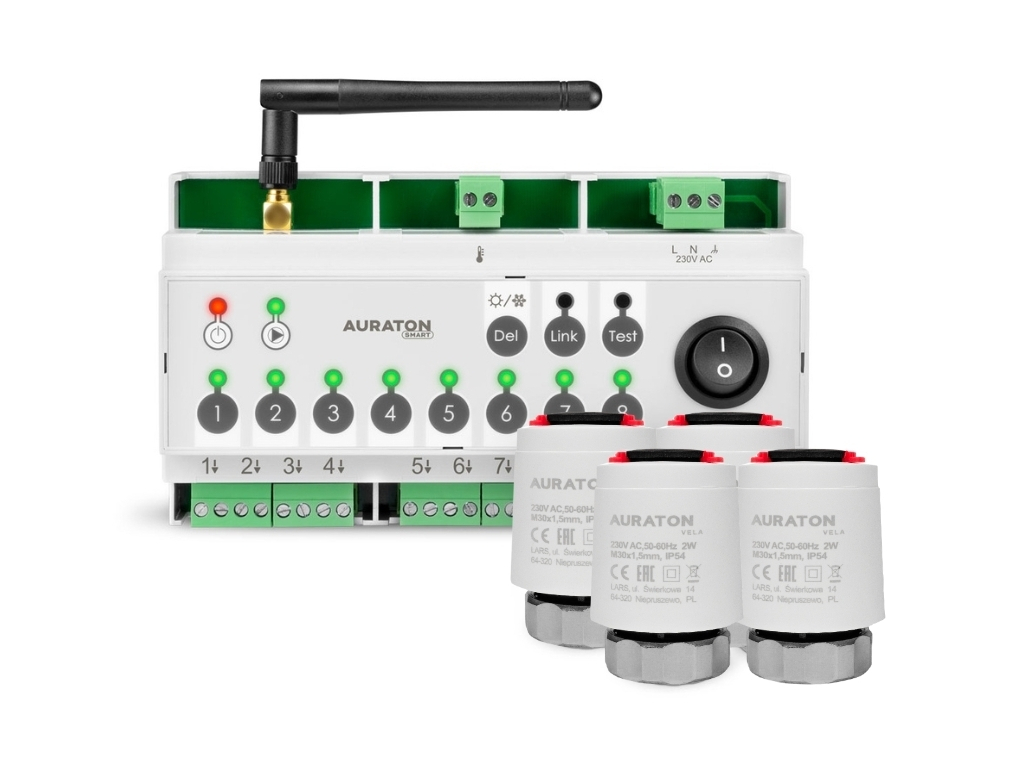

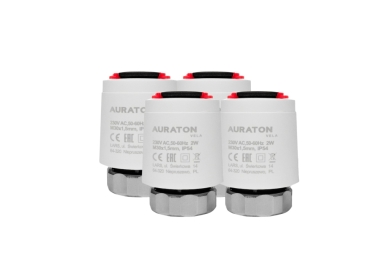

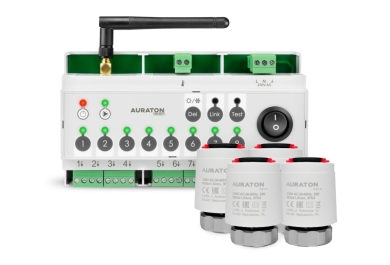

The Multizone Controller is a wireless set of devices for underfloor heating, which includes the smart AURATON Floor Heating Controller with a long radio range and four maintenance-free AURATON Vela thermostatic actuators. The Multizone Controller will help you manage multi-zone underfloor heating in your home, and in combination with the AURATON Pulse control panel it will provide you with remote heating control and the ability to set heating schedules. Enjoy heat when you are at home and save energy when you are away.

Are you interested in this product?

Pump Guard

DIN rail mounting

Heat Chip

Furnace Guard

8 heating zones

Get ready for SUPLA compatibility!

We're excited to announce that integration with the SUPLA system is almost complete.

To enjoy the full functionality of the SUPLA system, you only need an AURATON Box gateway, which will be available on the market soon.

Stay tuned for updates on our Facebook profile!

In the meantime, we invite you to get to know SUPLA system and app better.

Find out more

Comprehensive underfloor heating control

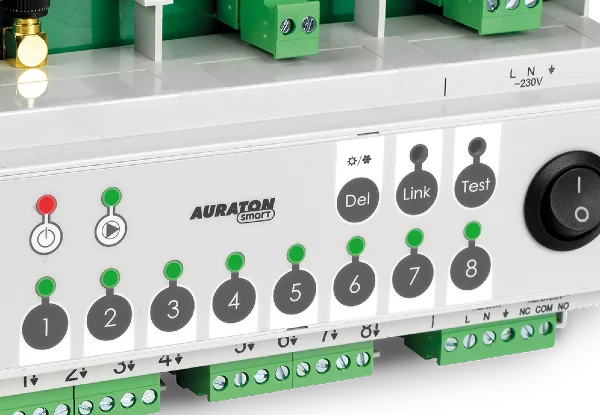

Control 8 heating zones, a central heating pump, and a boiler or other heating device using a single device. The wireless and intelligent AURATON Floor Heating Controller is a multi-functional device that will take care of underfloor heating control in your smart home.

Automatic and silent operation of all heating circuits

Do you have more than 4 circuits in your home? No problem. You can add up to 6 circuits to each heating zone - 6 AURATON Vela actuators per zone. Controlling each heating loop with AURATON Vela actuators guarantees quiet and smooth operation for many years.

Wireless communication of devices with Easy Connect

Connect the Multizone Controller set with other devices from the SMART line using the Easy Connect function and control your heating using the AURATON Heat Monitor temperature controller. You can also expand the set with the Pulse central unit and control your underfloor heating remotely, using a smartphone or tablet.

Uninterrupted operation and wide range

Thanks to a special, screw-in antenna, the wireless AURATON Floor Heating Controller will easily communicate with all other paired devices in your home. The additional antenna will ensure communication even if the strip is mounted in a metal underfloor distribution box - thanks to the magnet, you can easily attach it to the outside of the box.*

*External antenna sold separately.

Effective protection of the underfloor heating system

Install an external temperature sensor on the supply pipe and protect your heating system from overheating. The Heat Chip function will cut off the water supply to the underfloor manifold when it detects an excessively high water temperature in the system.

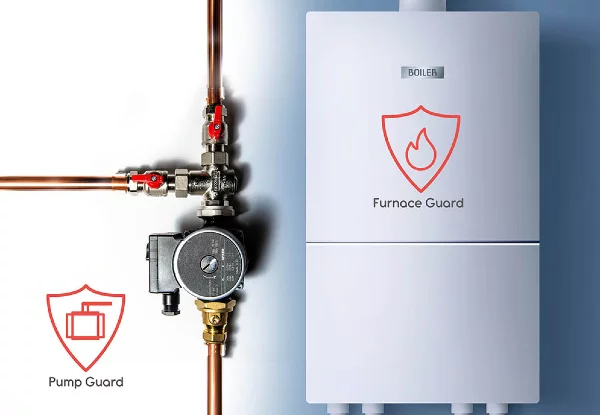

Modern protection of heating devices

Intelligent heating is not only hands-free operation and remote control, but also a longer life for heating devices. The Furnace Guard function protects them from too frequent switching on and off, while the Pump Guard protects the central heating pump from seizing and premature wear.

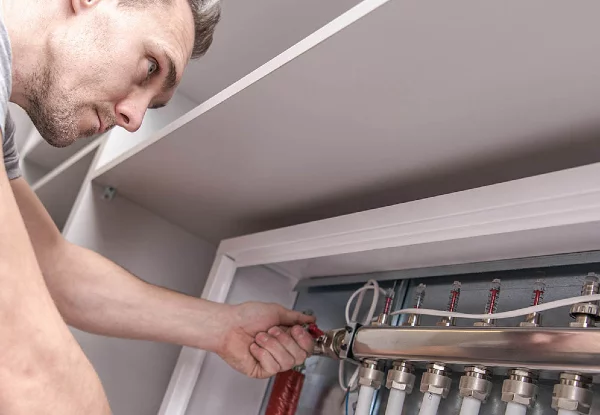

Tool-free installation

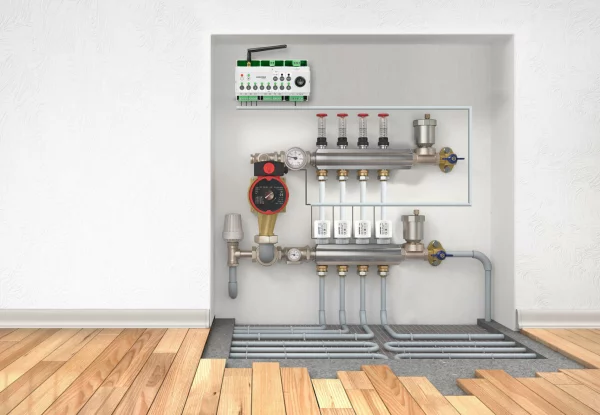

To take advantage of the set's capabilities, you don't need any additional tools. AURATON Vela actuators can be easily mounted on the manifold manually, and the AURATON Floor Heating Controller strip can be quickly snapped onto the DIN rail.

Set a daily schedule,
control and adjust from anywhere in the world.

Spontaneous weekend getaway? A captivating movie or book? Thanks to the AURATON Pulse control unit and the smartphone app, you can effectively control your heating, whether you're far from home or on your home couch. Raise the temperature in your home when you need it and lower it when you want to save.

Technical data

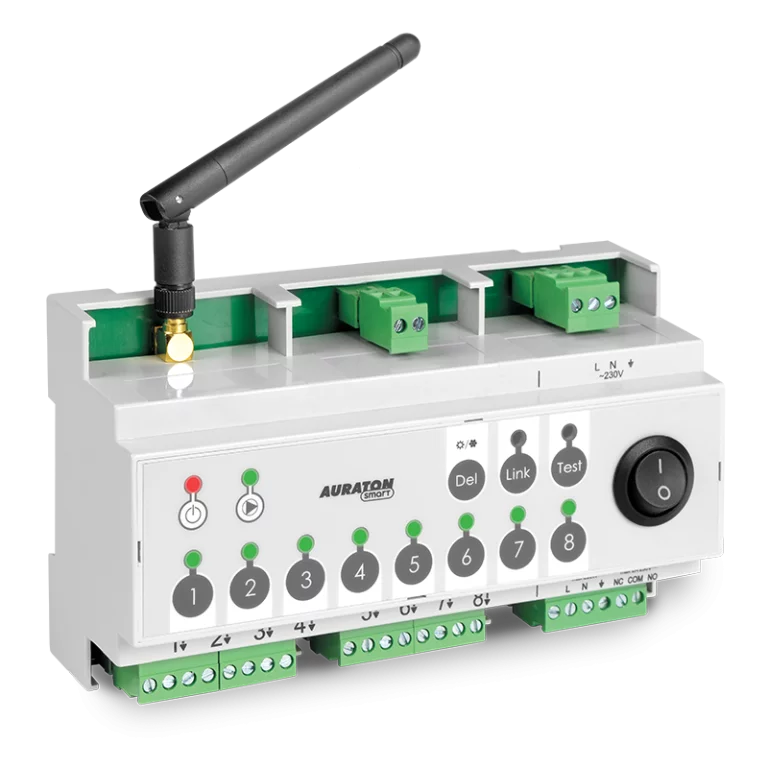

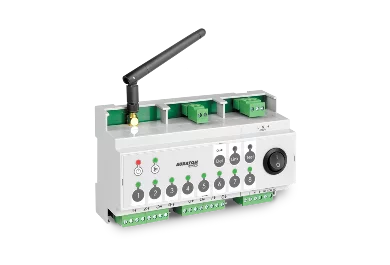

Technical data SMART strip - Floor Heating Controller

Power supply	230 V AC, 50 Hz, 1.5 W
Working temperature range	0 – 45°C
Working status signalling	LED diodes, sound signal
Number of independently controlled heating zones	8
Relay capacity	Max. 250 V AC, max. 2 A (potential-free contacts COM, NO, NC)
Head control output capacity 230 V	Max. 30 W, up to 6 AURATON Vela actuators per zone
Central heating pump output capacity 230 V	Max. 200 W
Relay and pump start delay	Approx. 3 minutes
Antenna connector type	SMA
External temperature sensor type	NTC 100K thermistor, B = 3990K
Working range	In a typical building with a standard wall construction – approx. 30 m; in an open space – up to 300 m
Radio frequency	868,150 MHz 868,450 MHz
Receiver category	2
Radio signal strength	Up to 14 dBm
Suggested mounting place	Manifold box DIN rail
IP Rating	IP 20

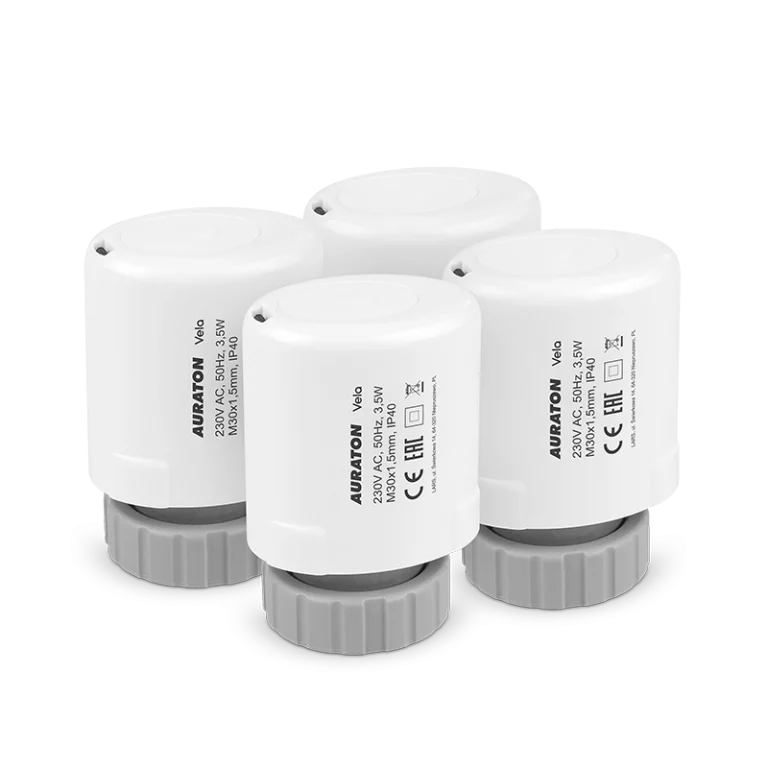

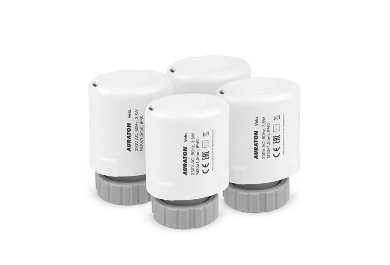

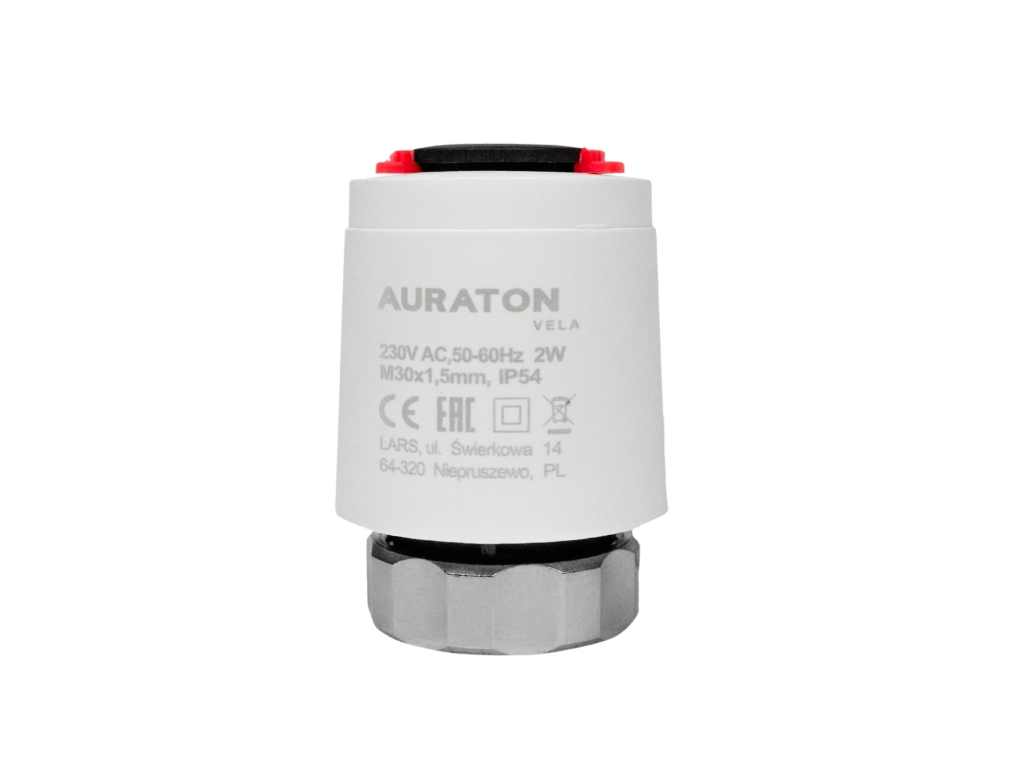

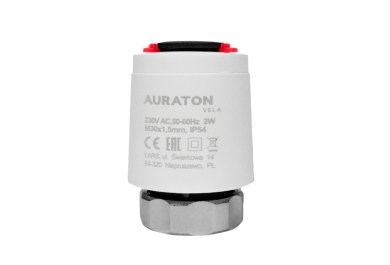

Technical data AURATON Vela

Power supply	230V AC, 50Hz, 3.5W
Operating temperature range	0 – 60°C
Power supply wire length	approx. 95 cm
Actuator stroke	3.6 mm
Pressure	100 N
Type	normally closed (NC)
Ingress protection	IP 40
Suggested mounting place	valve of the distributor
