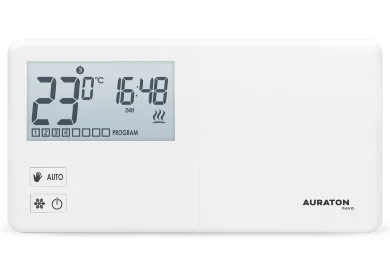

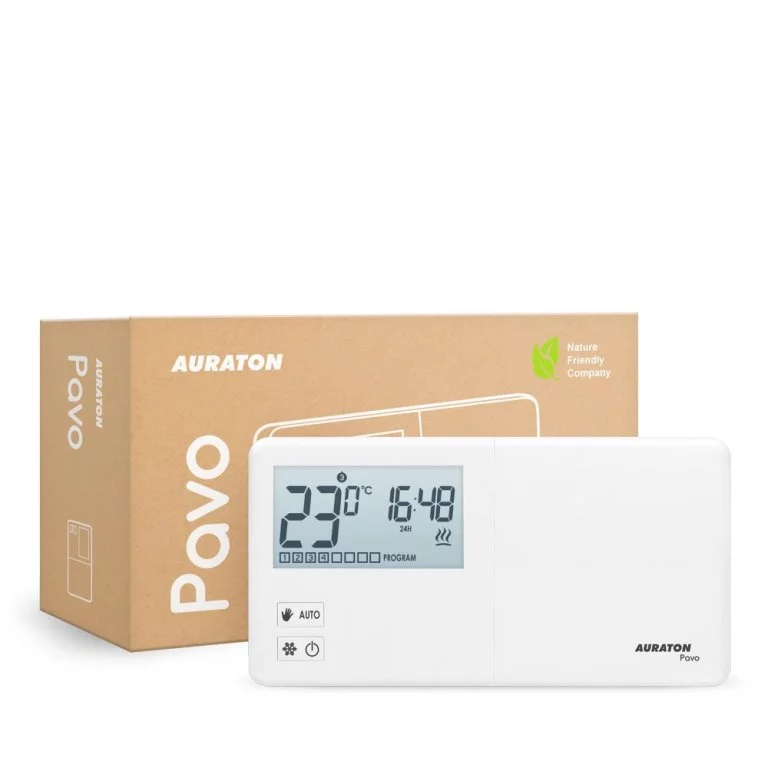

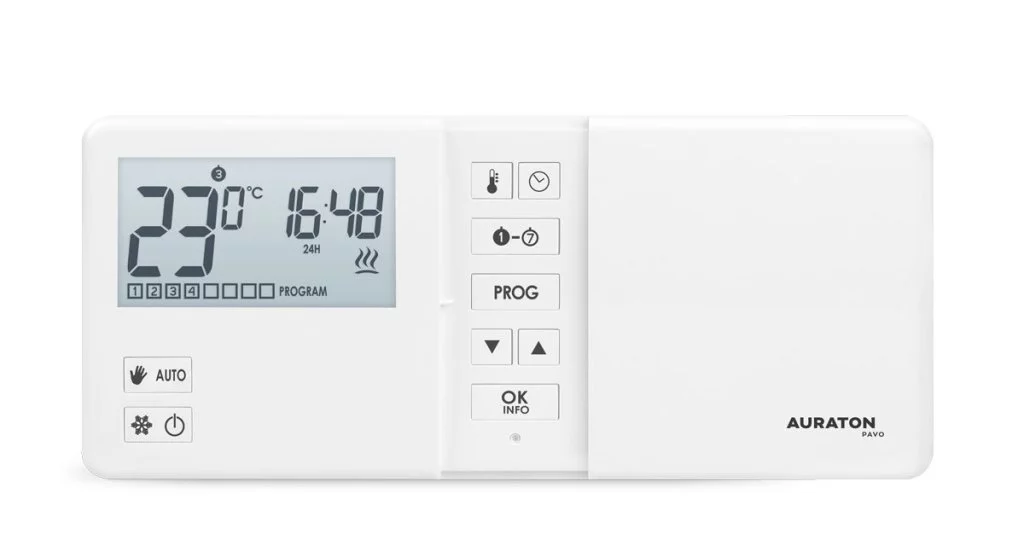

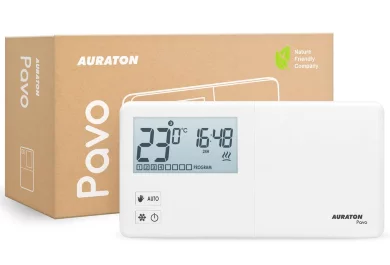

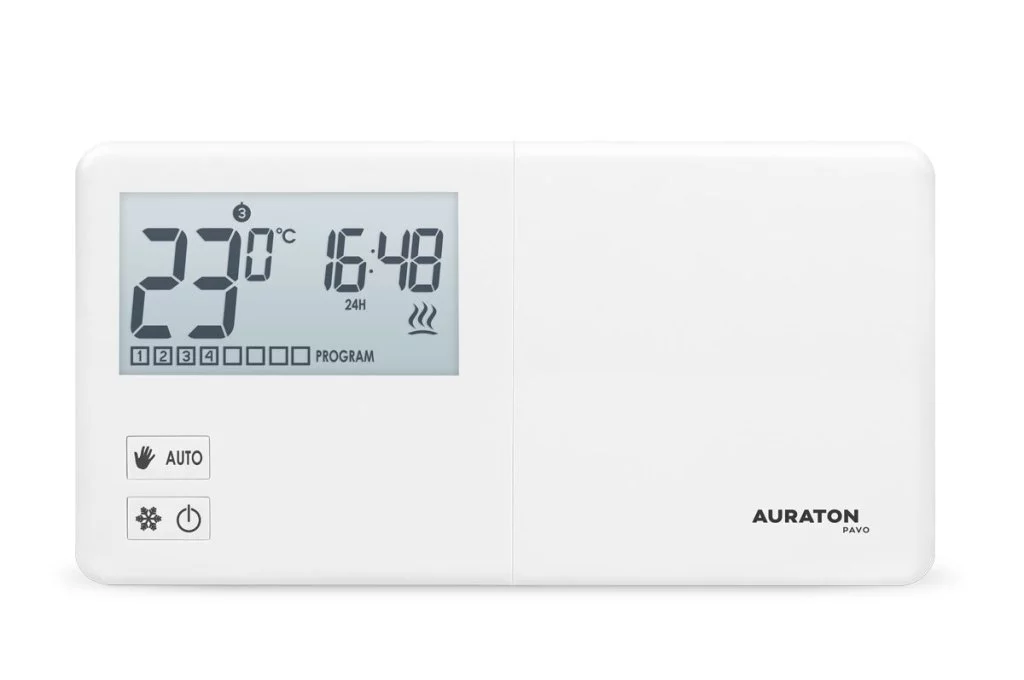

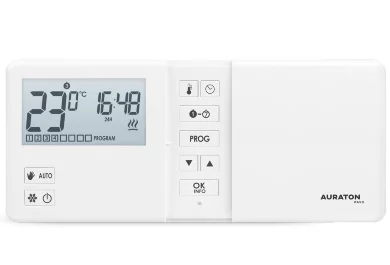

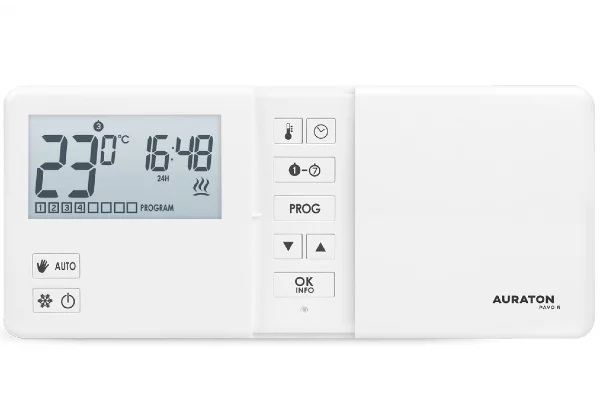

AURATON Pavo

Weekly wired thermostat

URATON Pavo (successor to AURATON 2030) is an advanced weekly, wired thermostat that allows for precise temperature management in the home. Equipped with a heating device operating time counter, AURATON Pavo offers the user flexibility and control over temperature.

The controller enables programming up to 8 independent temperature programs for weekdays, 8 for Saturday and 8 for Sunday. Additionally, the user has the option of setting an independent holiday temperature for up to 7 days and an anti-freeze temperature, adjustable from 4 to 10°C.

Are you interested in this product?

Where to buy

Holiday mode: setting an independent temperature for up to 7 days

8 independent temperatures per day + holiday + anti-freeze

8 temperature programmes for weekdays, 8 for Saturdays and 8 for Sunday

Minute precision of temperature settings

The FrostGuard function prevents the room from freezing

LCD display adapted to work in dimly lit rooms

PWM working mode

High-performance, professional thermostat

The LCD display, adapted for use in poorly lit rooms, ensures readability and easy operation. Thanks to the PWM operating mode, AURATON Pavo minimizes temperature fluctuations by cyclically switching the heating device on and off, which contributes to energy savings. The PWM algorithm ensures thermal comfort in the room while taking care of minimal energy consumption.

Thermostat with advanced features

AURATON Pavo also offers 8 temperature programs for weekdays, 8 for Saturday, and 8 for Sunday, allowing for precise temperature adjustment to different days of the week. Additionally, the holiday mode function allows you to set an independent temperature for up to 7 days, ensuring comfort during your absence.

Technical data

Power supply2xAA (2x1.5V), alkaline
Operating temperature range0° – 45°C
Working cycleweekly programmable
Working status signallingLCD display
Relay load capacitymax. 250V AC, max. 8A
Number of temperature levels11
Anti-freeze temperature4°C – 10°C
Temperature control range5 – 30°C
Hysteresis±0.2°C / ±0.4°C/PWM
Ingress protectionIP 20
Humidity≤85% non-condensing
