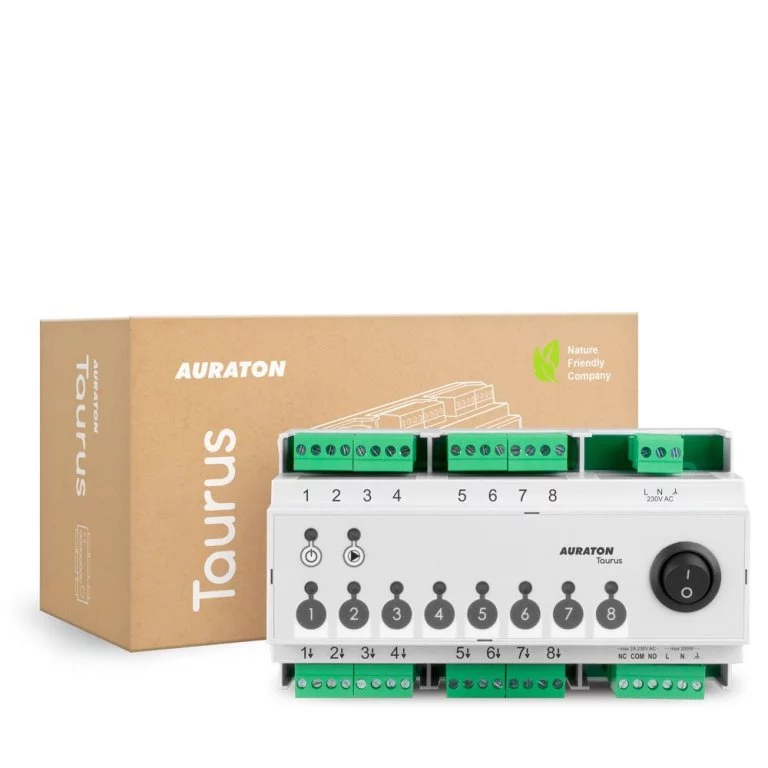

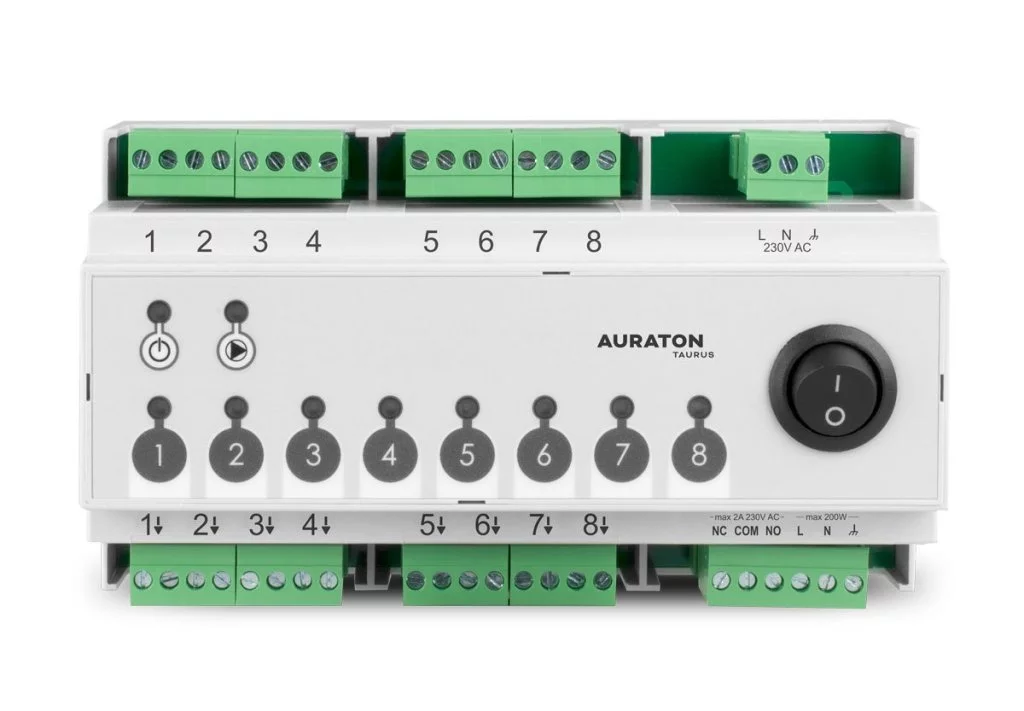

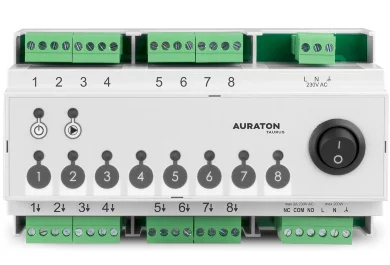

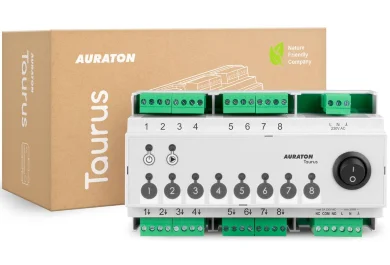

AURATON Taurus
Underfloor heating control strip (8 zones)
"AURATON Taurus (successor to AURATON 8D PRO) is a wired control strip for underfloor heating actuators, designed for easy installation in electrical cabinets. AURATON Taurus offers control of up to 8 heating zones, with the possibility of connecting up to 3 AURATON actuators per zone. This solution allows for precise temperature management in different rooms, ensuring thermal comfort throughout the entire home. Each zone can be monitored using a wired AURATON temperature controller, guaranteeing full control over the heating system. Additionally, by installing it with AURATON Vela actuators, you get a 10-year warranty on the control strip!
Are you interested in this product?
Where to buy
Heating device start delay function (approx. 3 min.)
Easy installation – the connections are equipped with pull-out clamps.
The AURATON wireless thermostat allows the user to monitor each heating zone
Control of the central heating circulation pump and the central heating furnace (potential-free contacts)
8 heating zones (up to 3 AURATON actuators per zone)
DIN rail mounting
Precise control of heating zones and heating devices
The AURATON Taurus control strip is equipped with a heating device startup delay function of approximately 3 minutes. This prevents sudden temperature spikes, contributing to smooth system operation. The control strip allows for simultaneous voltage control of the central heating circulation pump and control of the central heating boiler via potential-free contacts, increasing the efficiency of heating system management.
Underfloor heating control strip with wired temperature controller
The AURATON Taurus control strip works with wired temperature controllers, providing flexibility and the ability to adapt to different user needs. Compatibility with various devices makes AURATON Taurus a versatile solution for controlling underfloor heating.
Quick installation of the underfloor heating control strip
Thanks to the connections equipped with removable clamps, installation is quick and easy. They can be easily disconnected before making cable connections, which greatly facilitates the work of installers. The AURATON Taurus control strip is designed for DIN rail mounting, allowing for easy integration with existing installation systems. DIN rail mounting makes AURATON Taurus an ideal choice for professional installers and users looking for efficient and easy-to-use solutions for controlling underfloor heating.
10-year warranty on AURATON underfloor heating control strips
By installing AURATON brand underfloor heating control strips with AURATON Vela actuators, you get a 10-year warranty on the control strip! Thanks to the exceptional durability and reliability of our products, you can be sure that your heating system will operate flawlessly for many years to come. Choose AURATON for maximum comfort and safety in your home.
Technical data
| Power supply | 230V AC, 50Hz, 1.5W |
| Operating temperature range | 0 – 40°C |
| Working status signalling | LEDs |
| Relay load capacity | max. 250V AC, max. 2 A (potential-free contacts COM, NO, NC) |
| Head control output capacity | max. 30 W, up to 3 AURATON Vela actuators per zone |
| Central heating pump output capacity | max. 200 W |
| Number of independently controlled heating zones | 8 |
| Relay and pump start delay | approx. 3 minutes |
| Ingress protection | IP 20 |
| Suggested mounting place | manifold box DIN rail |
