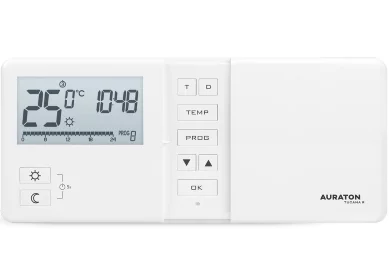

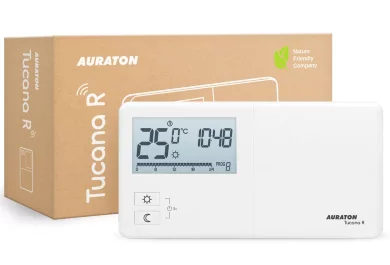

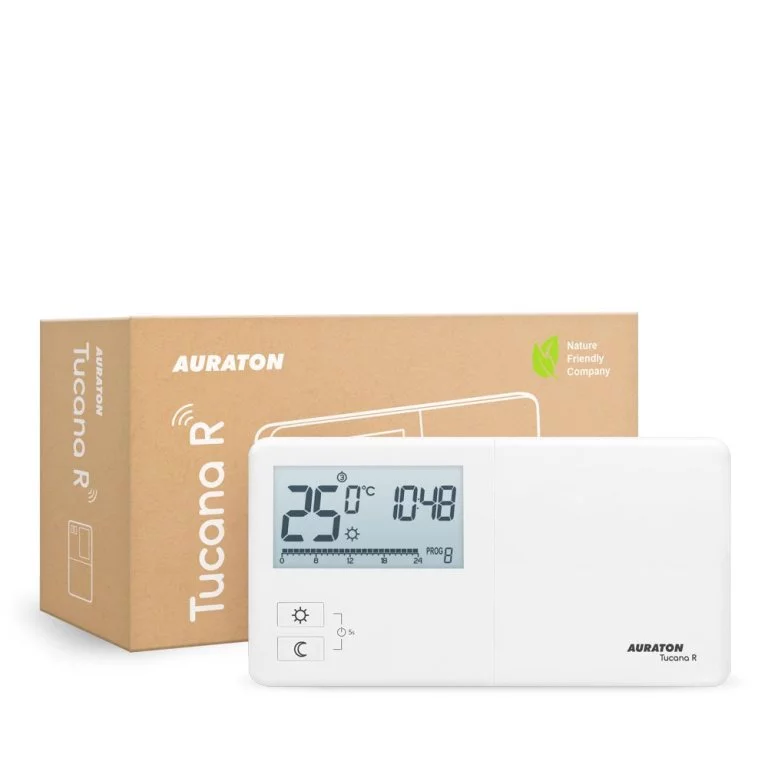

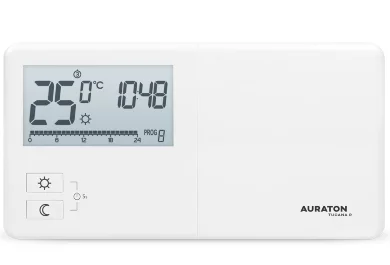

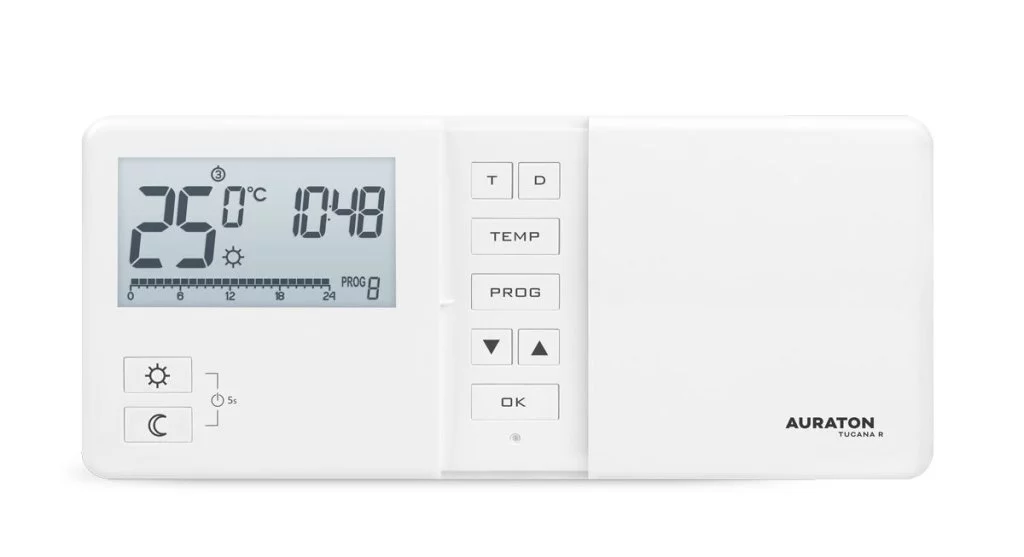

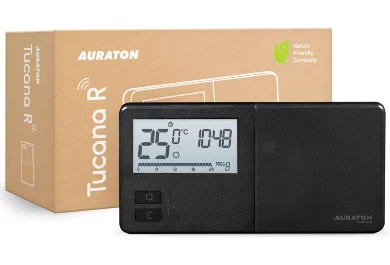

AURATON Tucana R

Weekly wireless thermostat (transmitter)

AURATON Tucana R (successor of AURATON 2025 R) is an advanced, weekly, wireless temperature controller, designed for maximum comfort and efficiency. Equipped with a heating device operating time counter, it allows the user to precisely monitor and optimize energy consumption. The controller offers 7 independently configurable programs and 4 independently adjustable temperatures: day, night, frost protection, and holiday, which allows for full adaptation of the heating system to the individual needs of the user.

Are you interested in this product?

Where to buy

Designed to work with AURATON Aries

Designed to work with AURATON Fornax

Hourly precision temperature setting

10 temperature programmes (7 user-modifiable)

4 independently settable temperatures (day, night, anti-freeze, holiday)

Holiday mode - setting an independent temperature for up to 99 days

PWM working mode

Weekly, wireless temperature controller

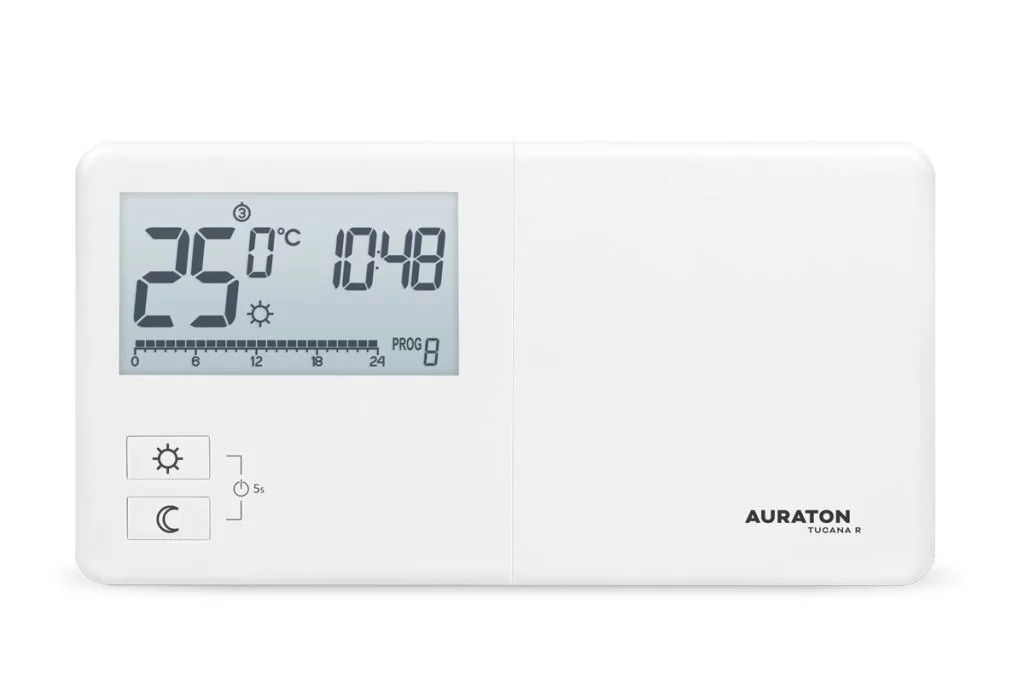

The AURATON Tucana R LCD display offers a choice of 3 backlight colors, ensuring excellent readability even in dimly lit rooms. The temperature controller is equipped with PWM (Pulse Width Modulation) operating mode, which involves cyclically switching the heating device on and off, minimizing temperature fluctuations. The PWM algorithm maintains constant thermal comfort while ensuring minimal energy consumption by optimizing the operation of the heating system.

Thermostat for a boiler or underfloor heating

The AURATON Tucana R acts as a radio transmitter and is designed to work with AURATON Fornax (receiver) and AURATON Aries (underfloor heating control unit). This advanced functionality allows for flexible management of the heating system, providing users with full control over room temperature. The thermostat also offers a vacation mode, allowing you to set an independent temperature for up to 99 days, which is ideal for longer absences.

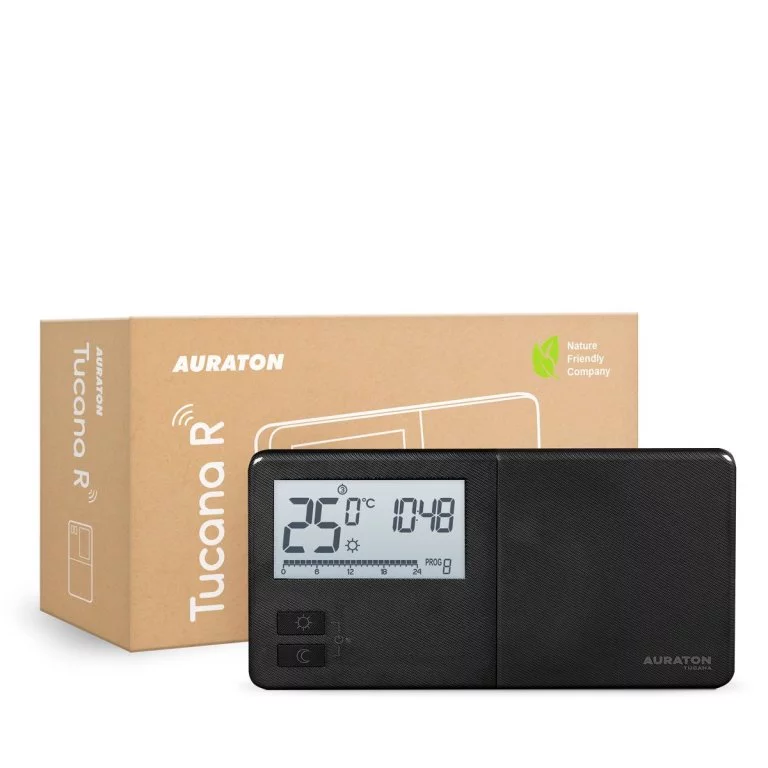

Black room thermostat

The AURATON Tucana R is available in a special Carbon Edition with a carbon fiber-like texture and a stylish graphite color. This edition provides the same reliable features, combining modern design with superior quality and performance.

Technical data

Power supply2xAA (2x1.5V), alkaline
Operating temperature range0° – 45°C
Working status signallingLCD display
Radio frequency868,850 MHz
869,000 MHz
Radio signal strengthup to 11 dBm
Operating rangein a typical building with a standard wall construction –
approx. 30 m; in an open space – up to 300 m
Number of temperature levels4
Anti-freeze temperature4 – 10°C
Temperature control range5 – 30°C
Hysteresis±0.2°C / ±0.4°C/PWM
Relay load capacitymax. 250V AC, max. 16A
Working cycleweekly programmable
Ingress protectionIP 20
Humidity≤85% non-condensing
