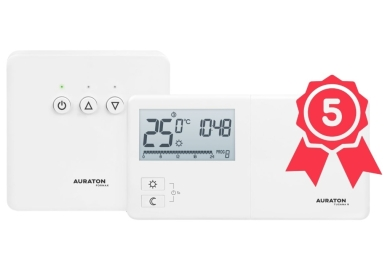

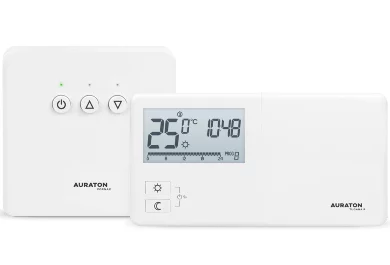

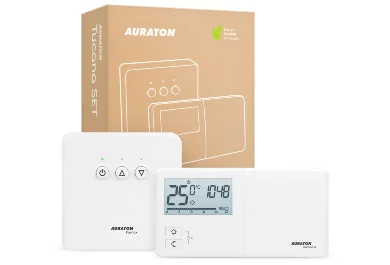

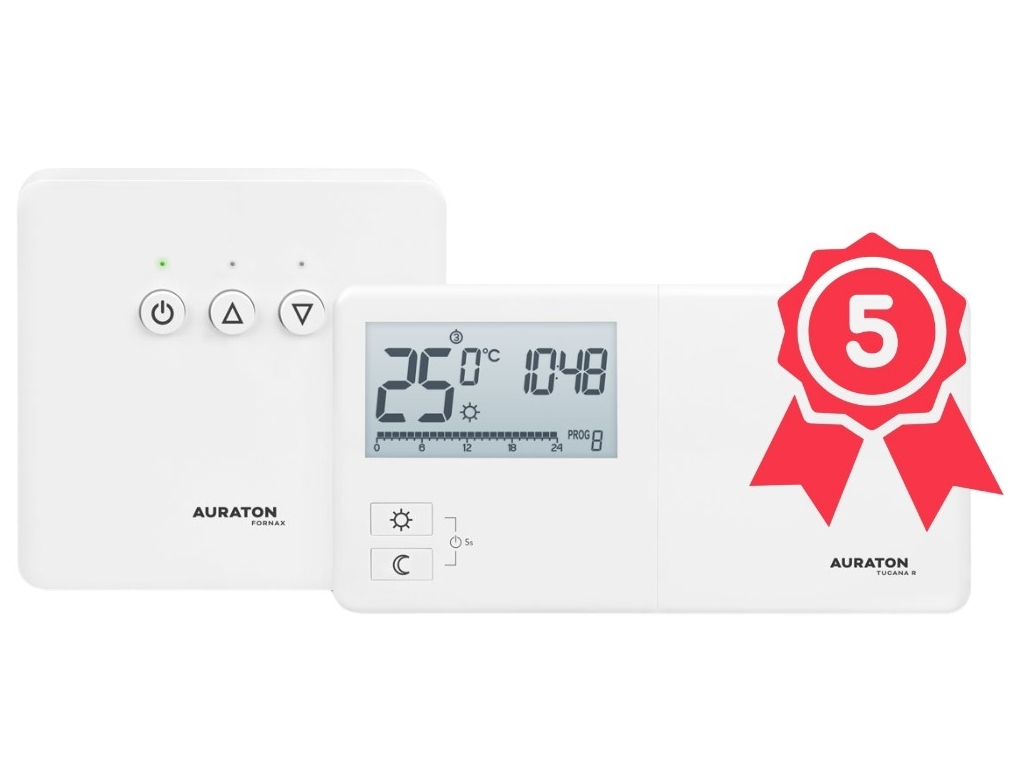

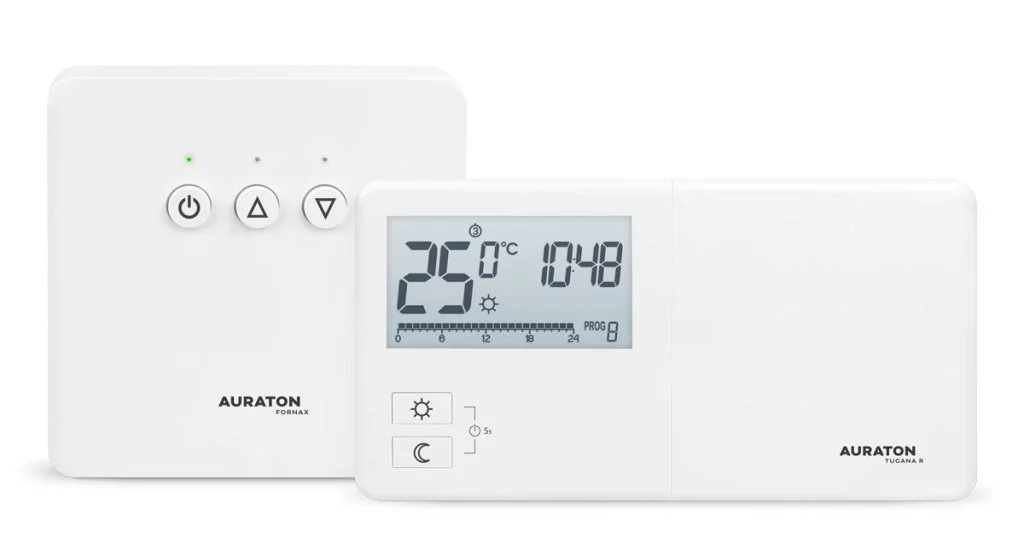

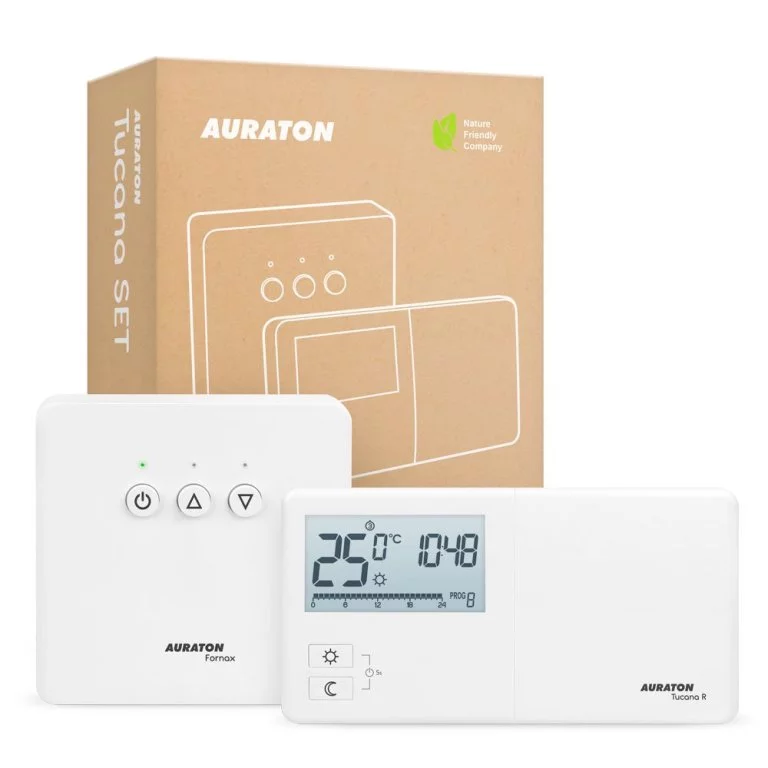

AURATON Tucana SET

Smart Home (16)

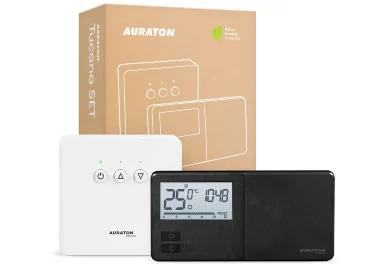

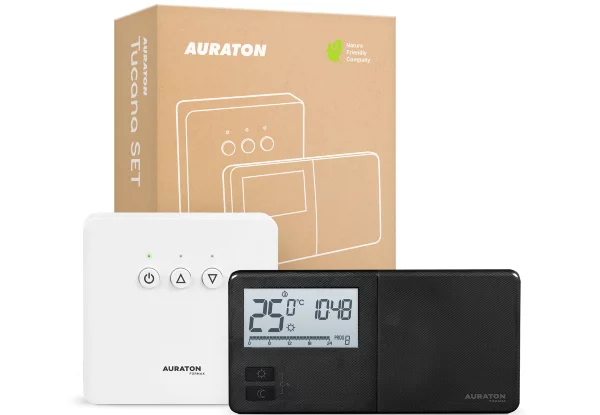

Weekly wireless thermostat with heating device controller (SET)

AURATON Tucana SET (successor of AURATON R25 RT) is a weekly, wireless thermostat with a heating device controller (set). The controller, together with the controller, provides comprehensive temperature control in rooms. Designed for quick installation and intuitive operation, the controller offers users simplicity and convenience. Available in two color versions, AURATON Tucana SET provides users with good, economical operation for many years.

Are you interested in this product?

Where to buy

Unique algorithm for saving the operating parameter of the receiver from the last 24 hours

Switch for easy servicing of the heating device

Hourly precision temperature setting

10 temperature programmes (7 user-modifiable)

4 independently settable temperatures (day, night, anti-freeze, holiday)

PWM working mode

Robust, reliable, wireless heating control set

The AURATON Tucana SET offers 4 independently adjustable temperatures: day, night, frost protection, and vacation, allowing for customization to various usage scenarios. The heating device's operating time counter helps monitor efficiency and energy consumption, which is particularly useful for managing operating costs. Additionally, thanks to a unique algorithm for recording the receiver's operating parameters over the last 24 hours, users can be sure that the system is operating according to optimal settings even in the event of disturbances.

A good heating device controller

The AURATON Fornax receiver is equipped with a special service switch that facilitates service work without the need to reset the controller parameters. Thanks to a unique heating cycle analysis algorithm, Fornax records operating parameters from the last 24 hours, allowing heating to continue according to the saved program even in the event of communication loss with the controller, ensuring uninterrupted and comfortable thermal conditions.

AURATON Tucana SET – how to set it up?

The LCD display in the AURATON Tucana R is adapted for use in dimly lit rooms and offers a choice of three backlight colors, increasing readability and user comfort. The AURATON Tucana SET has 10 temperature programs, of which 3 are factory-set and 7 can be freely modified to suit individual needs. The controller is also equipped with PWM mode, which cyclically switches the heating device on and off, minimizing temperature fluctuations. The PWM algorithm not only ensures constant thermal comfort but also optimizes energy consumption, making the system more economical.

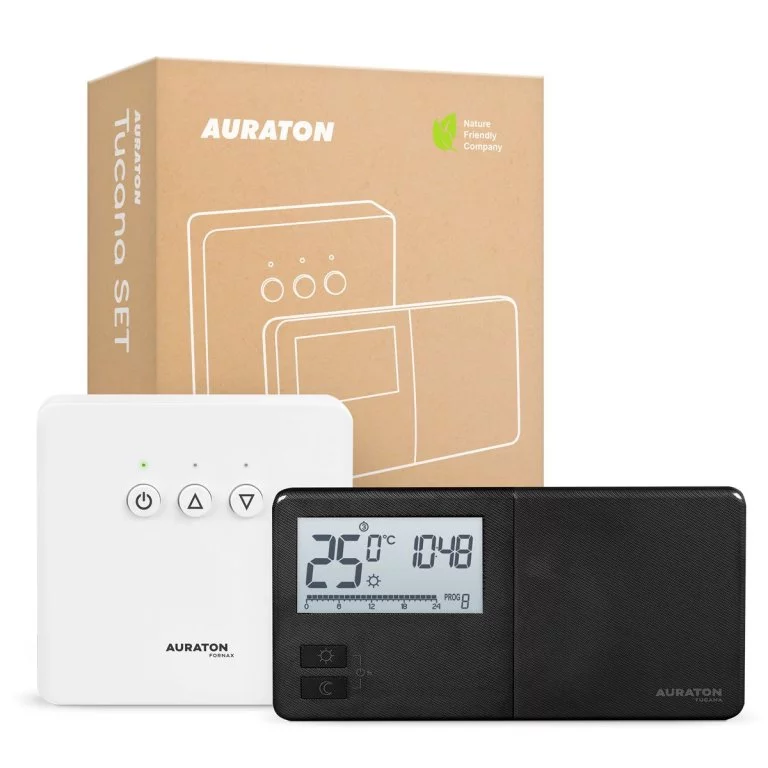

Thermostat in black or white

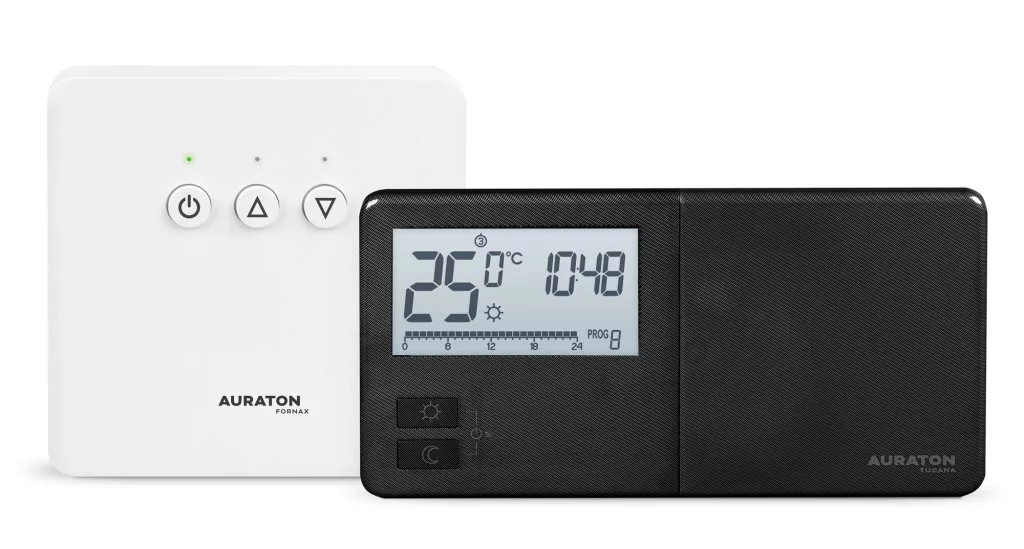

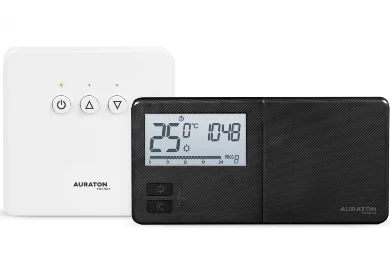

The AURATON Tucana SET is also available in a Carbon Edition. This model features a carbon fiber-like structure and an elegant graphite-colored thermostat.

Technical data

AURATON Tucana R power supply	2xAA (2x1.5V), alkaline
AURATON Fornax power supply	230V AC, 50Hz, 1.5W
Operating temperature range	0° – 45°C
AURATON Tucana R working status signalling	LCD display
AURATON Fornax working status signalling	LEDs, sound signal
Radio frequency	868,850 MHz 869,000 MHz
Radio signal strength	up to 11 dBm
Operating range	in a typical building with a standard wall construction – approx. 30 m; in an open space – up to 300 m
AURATON Fornax relay load capacity	max. 250V AC, max.16A
AURATON Tucana R number of temperature levels	4
AURATON Tucana R anti-freeze temperature	4 – 10°C
AURATON Tucana R temperature control range	5 – 30°C
AURATON Tucana R hysteresis	±0.2°C / ±0.4°C/PWM
Relay load capacity	max. 250V AC, max. 16A
Working cycle	weekly
Ingress protection	IP 20
Humidity	≤85% non-condensing
Receiver category	2
AURATON Fornax suggested mounting place	near heating device
