AURATON Pavo SET
Weekly wireless thermostat with heating device controller (SET)

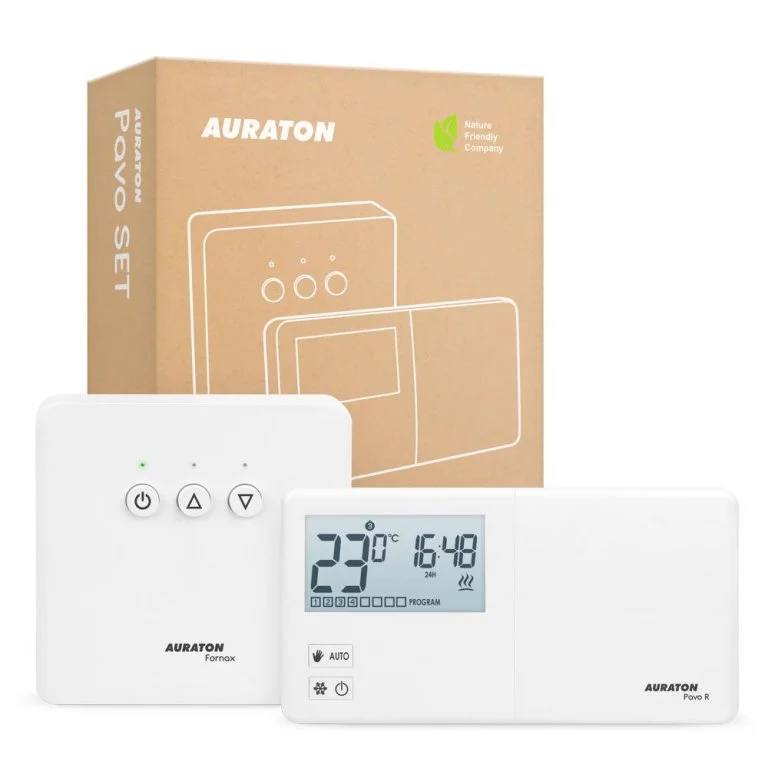

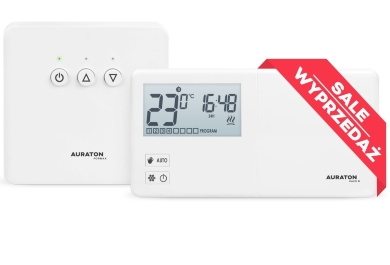

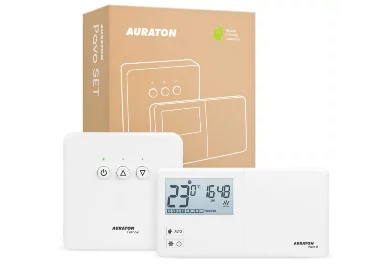

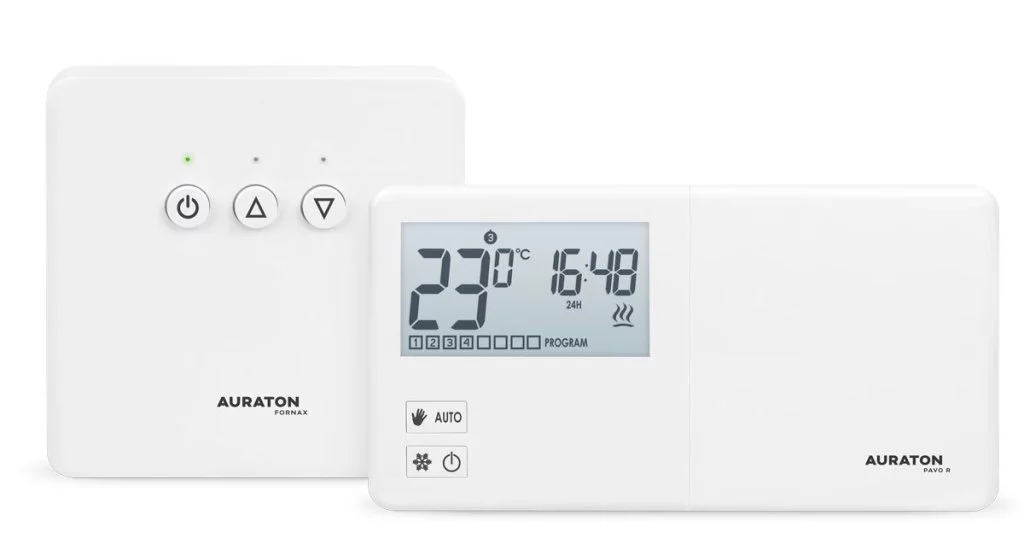

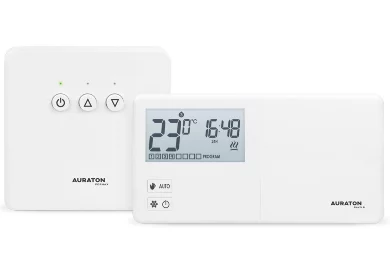

AURATON Pavo SET (successor to AURATON R30 RT) is a kit that includes an advanced, weekly, wireless temperature controller that works with the ergonomic heating device controller AURATON Fornax. The set offers precise temperature management with minute accuracy, ensuring comfort and energy efficiency in every home.
Are you interested in this product?
Where to buy
Unique algorithm for saving the operating parameter of the receiver from the last 24 hours
Switch for easy servicing of the heating device
8 independent temperatures per day + holiday + anti-freeze
8 temperature programmes for weekdays, 8 for Saturdays and 8 for Sunday
Minute precision of temperature settings
PWM working mode
Create a custom heating schedule with the AURATON Pavo R
AURATON Pavo R allows you to set 8 temperature programs for weekdays, 8 for Saturdays, and 8 for Sundays. Additionally, you can set an independent holiday temperature for up to 7 days and an anti-freeze temperature, adjustable from 4-10°C.

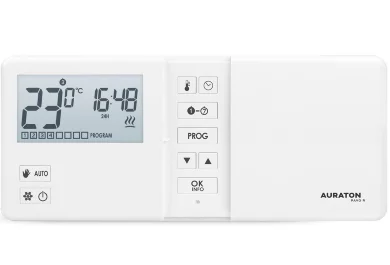

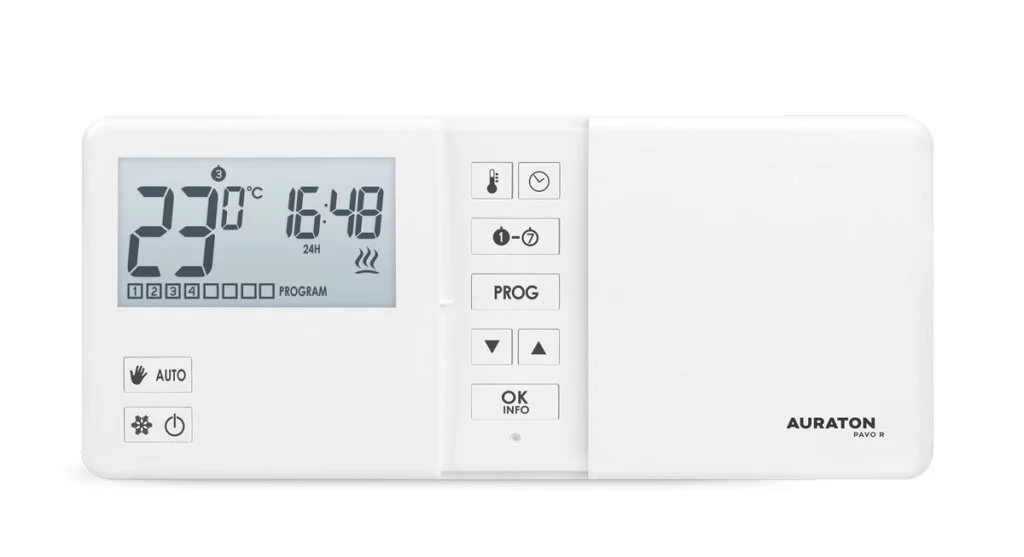

Enhanced visibility with the AURATON Pavo R
The LCD display in AURATON Pavo R is adapted for use in poorly lit rooms and offers a choice of 3 backlight colors, which increases user comfort and readability.

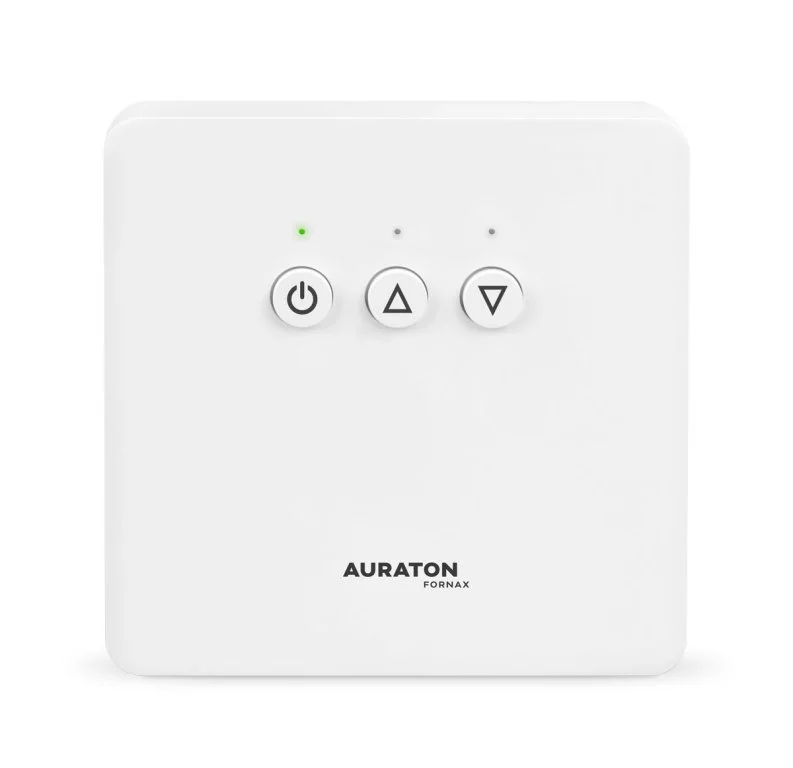

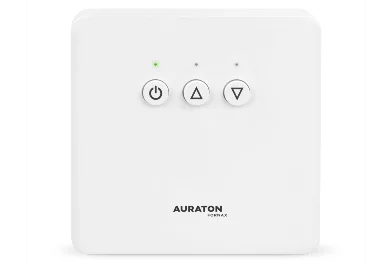

Simple and quick installation of the boiler receiver
The ergonomic design of AURATON Fornax and its removable connection blocks allow for quick and easy installation. Additionally, the receiver is equipped with a service switch, which facilitates the operation and servicing of heating devices without the need to change the controller settings.
Heating cycle algorithm and reliable operation of heating devices
AURATON Fornax has a unique heating cycle analysis algorithm that records operating parameters from the last 24 hours. In the event of a communication failure with the controller, the receiver implements previously programmed settings, allowing for troubleshooting without loss of thermal comfort.
Wireless controller set with PWM
The thermostat is equipped with PWM (Pulse Width Modulation) operating mode, which minimizes temperature fluctuations by cyclically switching the heating device on and off. The PWM algorithm ensures stable thermal comfort while ensuring minimal energy consumption.
Technical data
| AURATON Pavo R power supply | 2xAA (2x1.5V), alkaline |
| AURATON Fornax power supply | 230V AC, 50Hz, 1.5W |
| Operating temperature range | 0° – 45°C |
| AURATON Pavo R working status signalling | LCD display |
| AURATON Fornax working status signalling | LEDs, sound signal |
| Radio frequency | 868,850 MHz 869,000 MHz |
| Radio signal strength | up to 11 dBm |
| Operating range | in a typical building with a standard wall construction – approx. 30 m; in an open space – up to 300 m |
| AURATON Fornax relay load capacity | max. 250V AC, max.16A |
| AURATON Pavo R number of temperature levels | 11 |
| AURATON Pavo R anti-freeze temperature | 4 – 10°C |
| AURATON Pavo R temperature control range | 5 – 30°C |
| AURATON Pavo R hysteresis | ±0.2°C / ±0.4°C/PWM |
| Relay load capacity | max. 250V AC, max. 16A |
| Working cycle | weekly |
| Ingress protection | IP 20 |
| Humidity | ≤85% non-condensing |
| Receiver category | 2 |
| AURATON Fornax suggested mounting place | near heating device |
