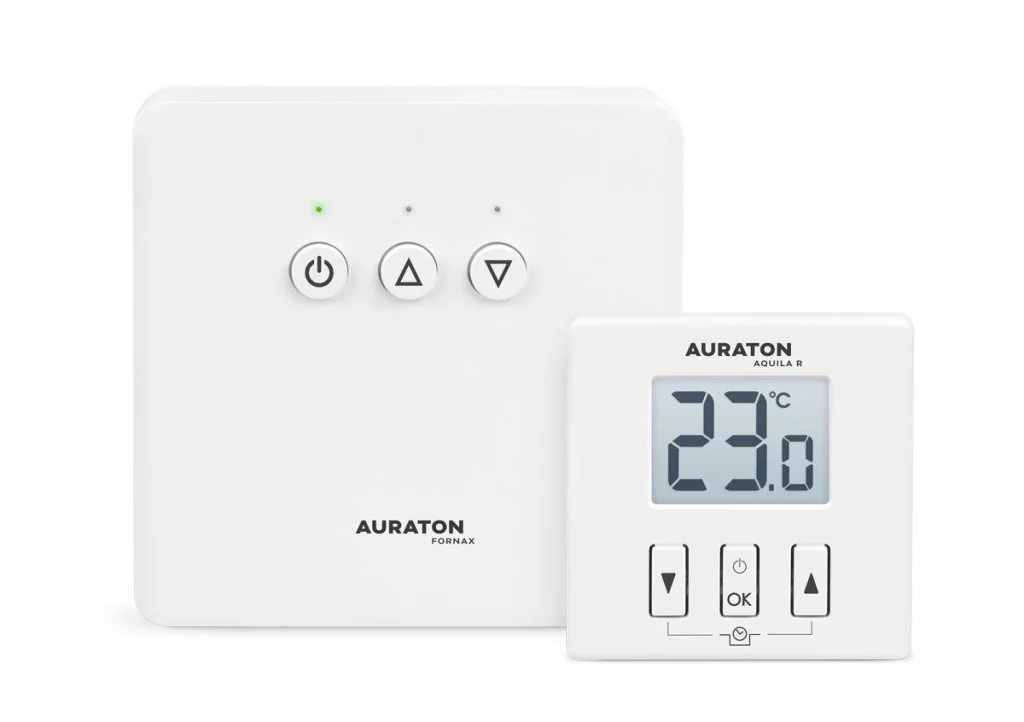

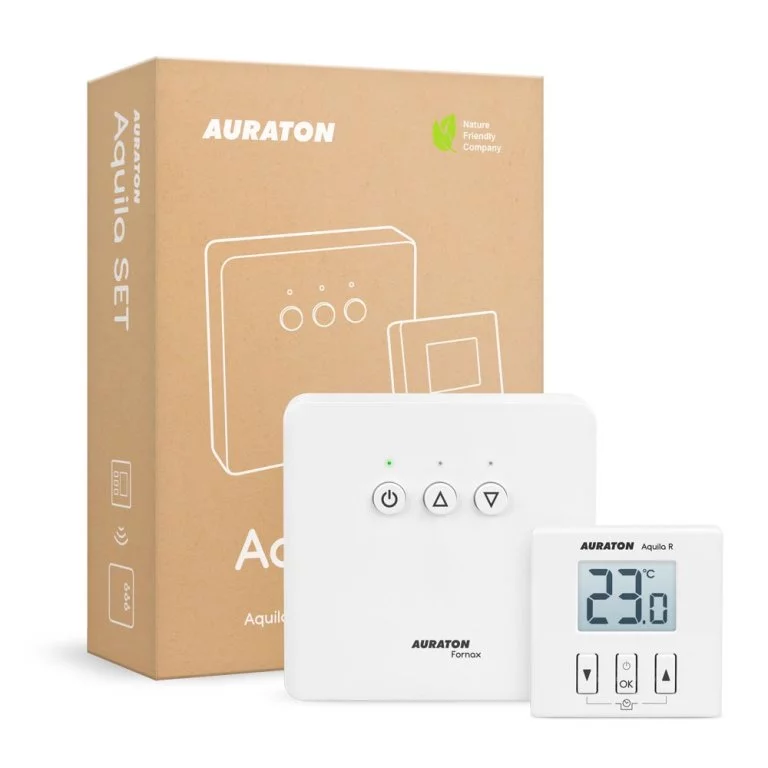

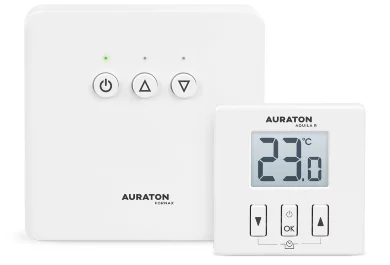

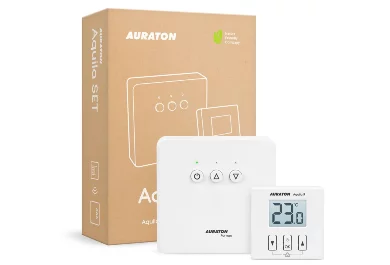

Daily wireless thermostat with heating device controller (SET)

The AURATON Aquila SET (successor to the AURATON 200 RT) is a wireless daily temperature controller that includes a heating device controller. The thermostat features a function for cyclically lowering the temperature by 3°C for 6 hours each day at the same time, helping to save energy and ensure optimal thermal comfort. Additionally, the FrostGuard function prevents rooms from freezing, which is extremely useful during cold winter periods.

Are you interested in this product?

Where to buy

Unique algorithm for saving the operating parameter of the receiver from the last 24 hours

Switch for easy servicing of the heating device

Economy Mode – cyclical reduction of temperature by 3°C for 6 hours, every day at the same time

Flexible mounting on a wall or shelf

The FrostGuard function prevents the room from freezing

PWM working mode

Energy-Efficient Wireless Heating Control Set

The AURATON Aquila SET is equipped with an advanced heating cycle analysis algorithm that records the receiver's operating parameters from the past 24 hours. This allows the receiver to run the previously saved program in the event of a communication failure with the temperature controller, minimizing the risk of losing thermal comfort. The controller uses PWM operating mode, which involves cyclically turning the heating device on and off. This algorithm reduces temperature fluctuations, maintains consistent thermal comfort, and ensures lower energy consumption.

How to Install the Thermostat?

The installation of the AURATON Aquila SET is highly versatile, allowing it to be mounted on a 60 mm diameter box or used as a stand-alone device. Additionally, the thermostat comes with a dedicated switch that facilitates servicing of the heating device. The economic mode allows for cyclic temperature reduction, contributing to further energy savings.

White or Black Thermostat?

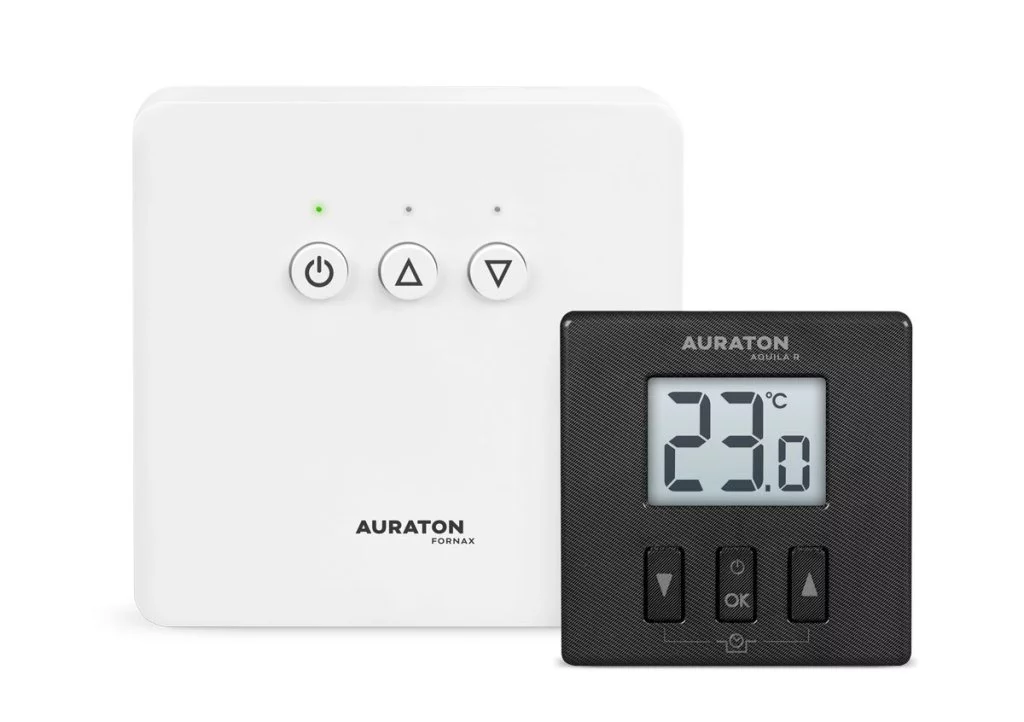

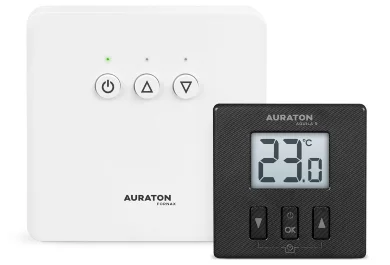

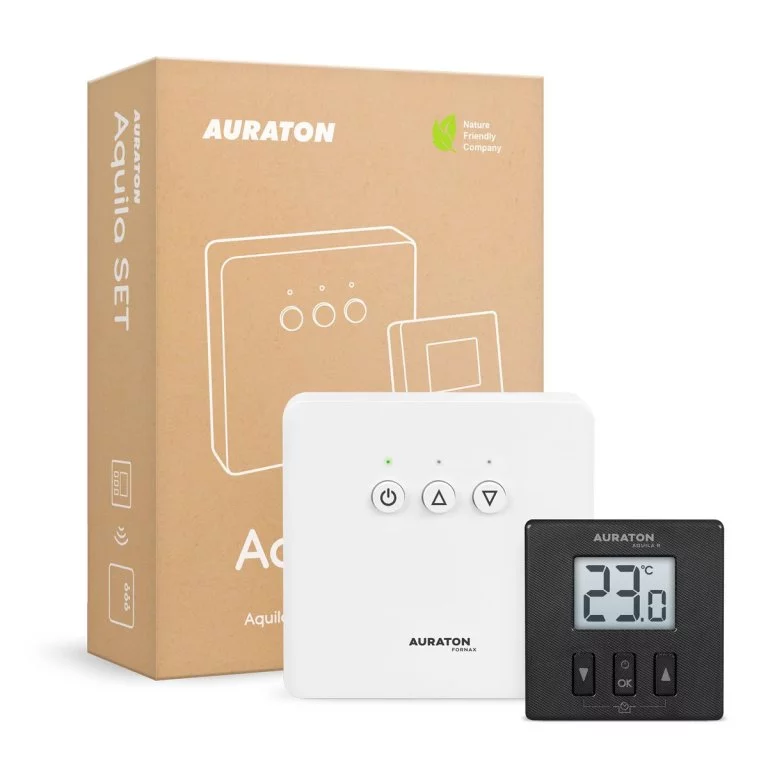

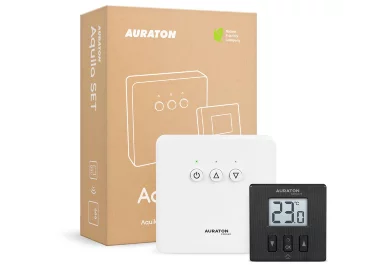

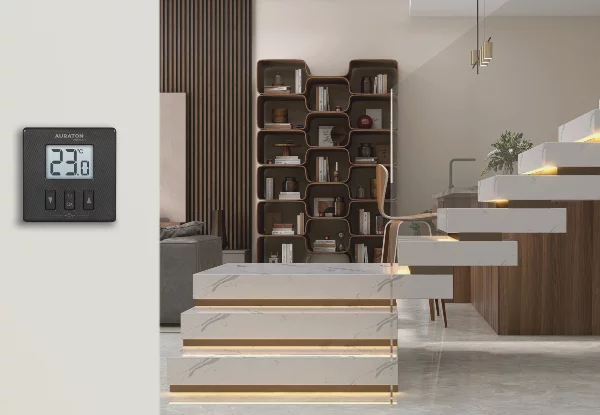

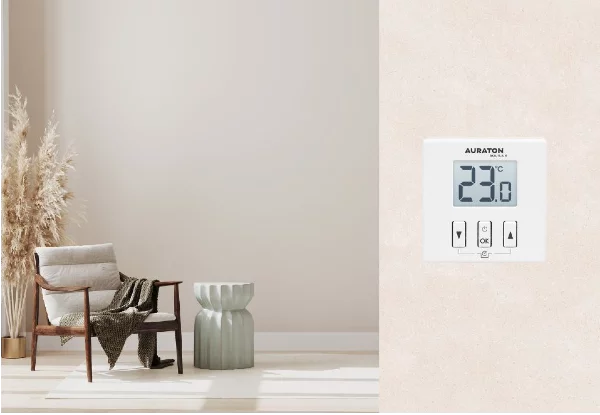

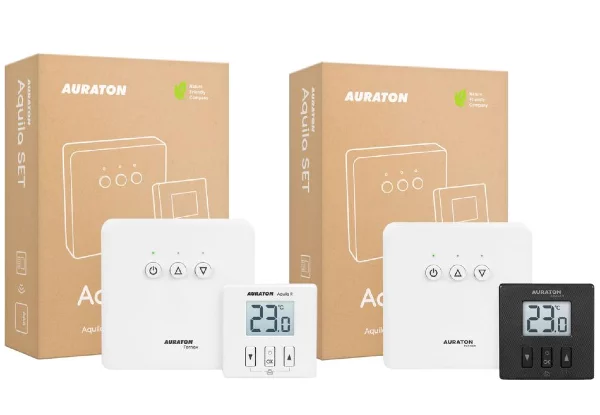

The AURATON Aquila SET is available in two color options for the thermostat—classic white or Black Carbon Edition. The AURATON Aquila SET Carbon Edition features a texture reminiscent of carbon fiber. The graphite color gives the device a modern and elegant appearance, while maintaining the same reliable functionality as the standard model.

Technical data

AURATON Fornax power supply	230V AC, 50Hz, 1.5W
AURATON Aquila R power supply	2xAAA (2x1.5V), alkaline
Operating temperature range	0 – 45°C
Working cycle	daily
Radio frequency	868.850 MHz \| 869.000 MHz
Radio signal strength	up to 11 dBm
Operating range	in a typical building with a standard wall construction – approx. 30 m; in open space – up to 300 m
AURATON Fornax working status signalling	LEDs, sound signal
AURATON Aquila R working status signalling	AURATON Aquila R working status signalling
Relay load capacity	max. 250V AC, max. 16A
Number of temperature levels	1
AURATON Aquila R anti-freeze temperature	2°C
AURATON Aquila R temperature control range	5 – 30°C
Temperature measuring range	0 – 35 °C
Hysteresis	±0.2°C/±0.4/PWM
Ingress protection	IP 20
Humidity	≤85% non-condensing
Receiver category	2
AURATON Fornax suggested mounting place	near heating device
