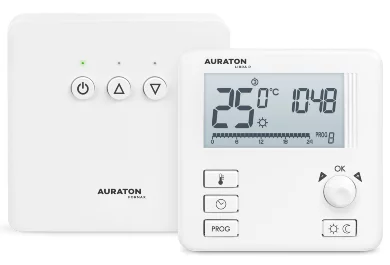

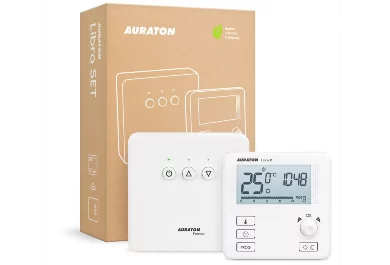

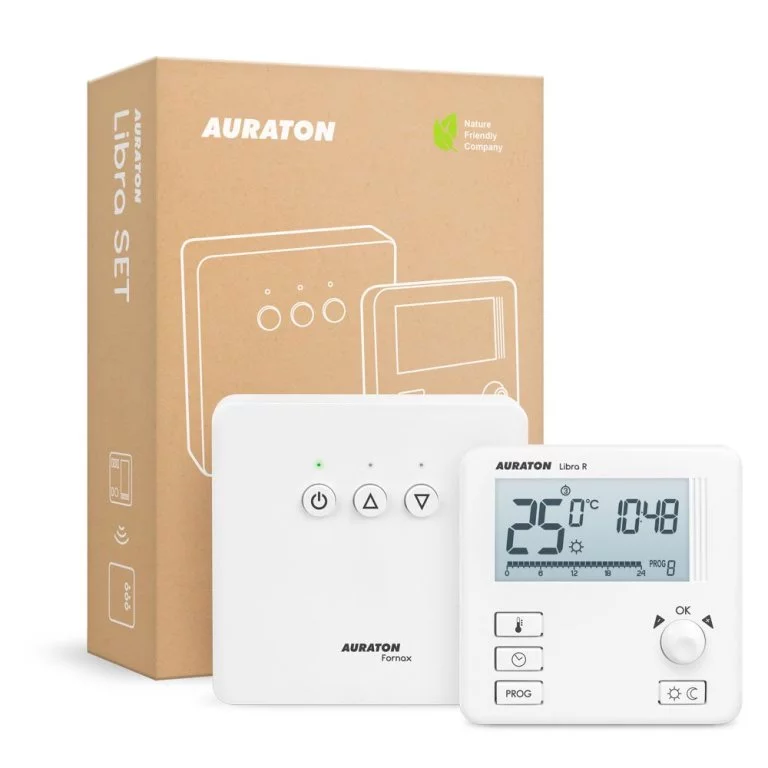

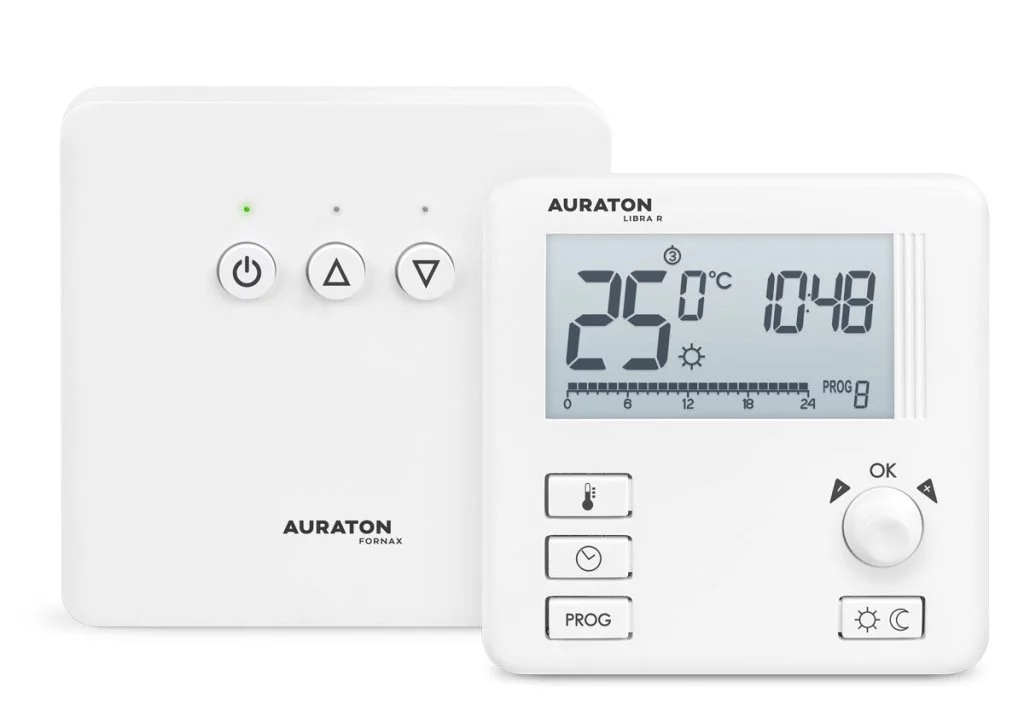

AURATON Libra SET
Weekly wireless thermostat with heating device controller (SET)
AURATON Libra SET (successor to AURATON 3021 RT) is a wireless weekly temperature controller that includes a heating device controller in the set. The controller operates in heating or cooling mode, offering versatile solutions for every season. Thanks to a unique heating cycle analysis algorithm, the device can save the receiver's operating parameters for the last 24 hours, ensuring continuity and reliability of operation even in the event of no communication with the controller.
Are you interested in this product?
Where to buy
Unique algorithm for saving the operating parameter of the receiver from the last 24 hours
Switch for easy servicing of the heating device
3 independent temperatures (day, night, anti-freeze)
Heating or cooling operation mode
10 temperature programmes (7 user-modifiable)
PWM working mode
Thermostat with a wide range of settings
AURATON Libra SET allows the user to manage 7 independently configurable programs, and is also equipped with a factory-set anti-freeze temperature, which protects the installation from freezing during the winter period. The controller is equipped with 9 temperature programs, including three independent temperatures: day, night, and anti-freeze. The ability to choose between heating and cooling modes makes AURATON Libra SET an ideal solution for both homes and offices, providing comfort in all conditions.
Features for advanced users and installers
The ergonomic shape of the controller allows for easy installation, and a special switch facilitates servicing the heating device. Thanks to the PWM operating mode, the controller cyclically switches the heating device on and off, minimizing temperature fluctuations and maintaining thermal comfort in the room, while also taking care of lower energy consumption.

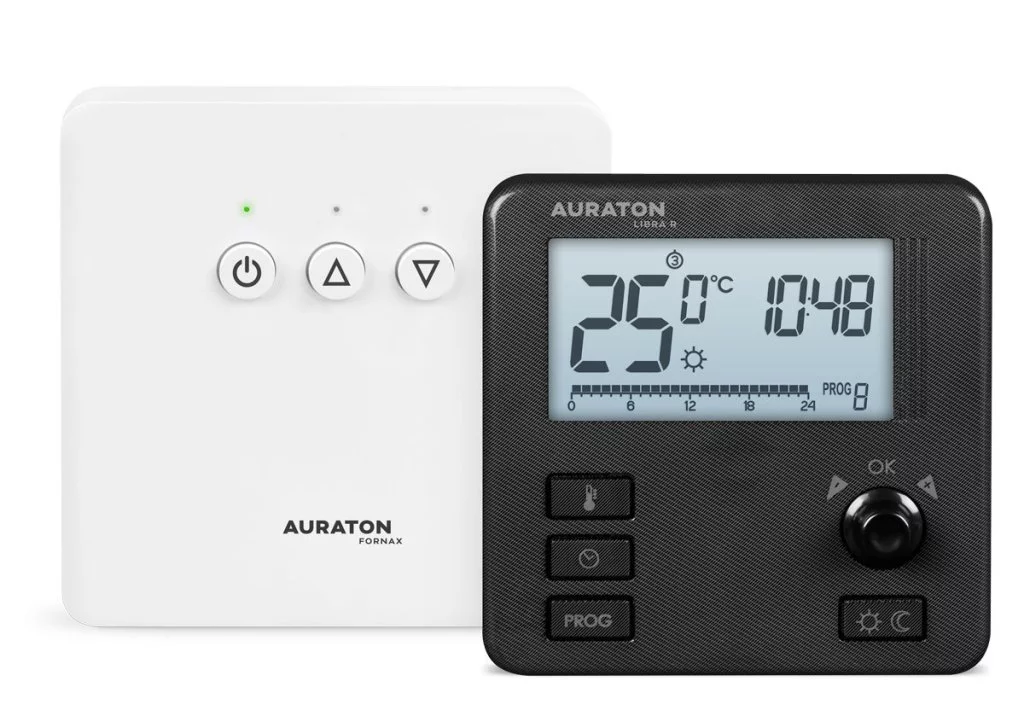

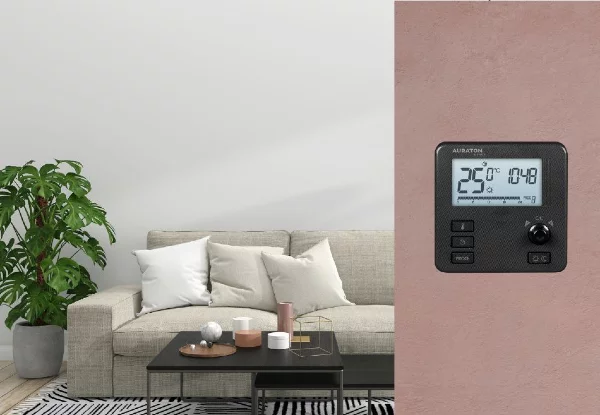

Wireless, black temperature controller

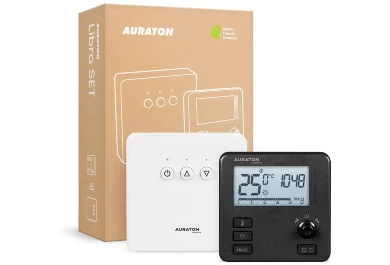

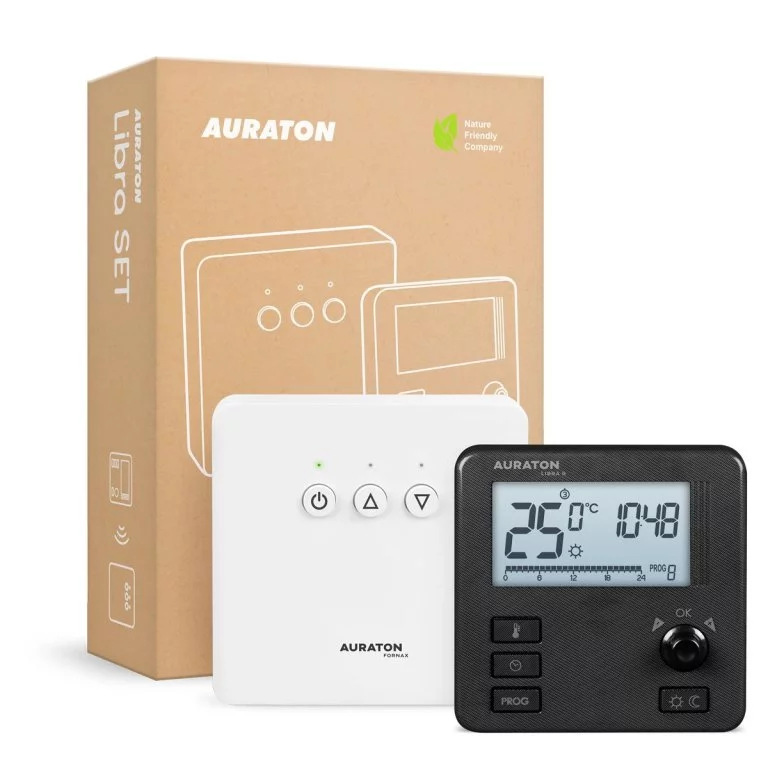

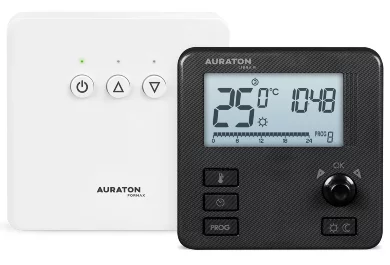

The AURATON Libra SET is available in two color versions of the temperature controller - classic white or black Carbon Edition. AURATON Libra SET Carbon Edition has a texture resembling carbon fiber, which gives the controller a modern and elegant look.
Technical data
| AURATON Libra R power supply | 2xAAA (2x1.5V), alkaline |
| AURATON Fornax power supply | 230V AC, 50Hz, 1.5W |
| Operating temperature range | 0° – 45°C |
| AURATON Libra R working time signalling | LCD display |
| AURATON Fornax working status signalling | LEDs, sound signal |
| Radio frequency | 868.850 MHz | 869.000 MHz |
| Radio signal strength | up to 11 dBm |
| Operating range | in a typical building with a standard wall construction – approx. 30 m; in an open space – up to 300 m |
| AURATON Fornax relay load capacity | max. 250V AC, max.16A |
| Number of temperature levels | 2 |
| AURATON Libra R anti-freeze temperature | 7°C |
| AURATON Libra R temperature control range | 5 – 30°C |
| AURATON Libra R hysteresis | ±0.2°C / ±0.4°C/PWM |
| Relay load capacity | max. 250V AC, max. 16A |
| Working cycle | weekly |
| Ingress protection | IP 20 |
| Humidity | ≤85% non-condensing |
| Receiver category | 2 |
| AURATON Fornax suggested mounting place | near heating device |
