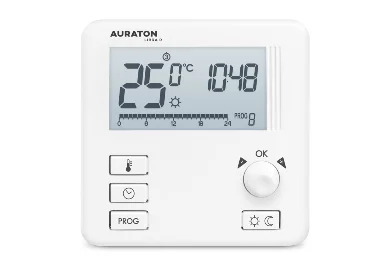

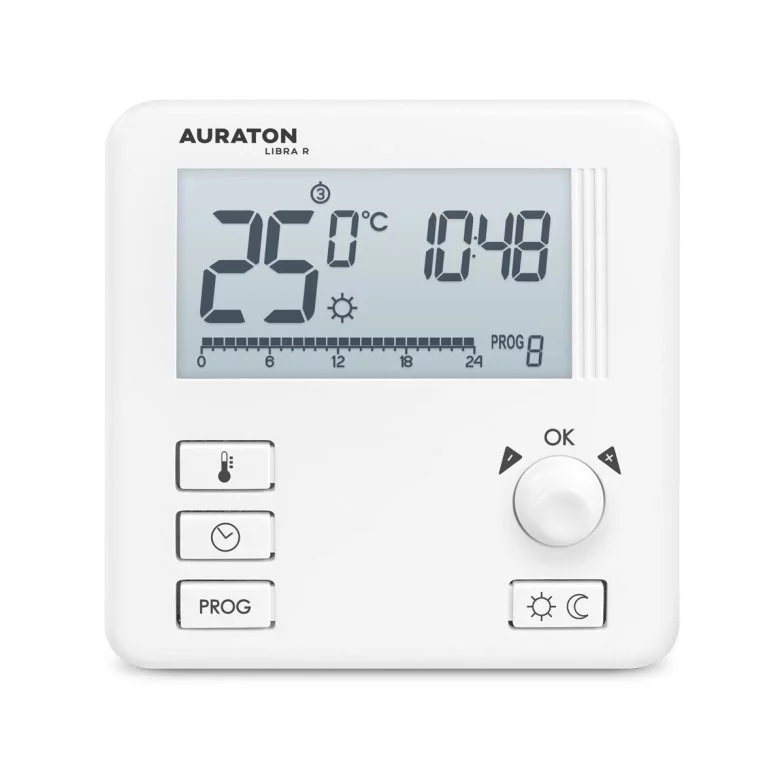

AURATON Libra R

Weekly wireless thermostat (transmitter)

AURATON Libra R (successor to AURATON 3021 R) is an advanced temperature controller that operates in both heating and cooling modes. The device has 10 temperature programs, of which 7 can be modified by the user. The controller works great in conjunction with the heating device receiver - AURATON Fornax or the wireless underfloor heating control strip - AURATON Aries. Thanks to the on/off cycle memory algorithm, AURATON Libra R ensures stable and efficient operation of the heating system.

Are you interested in this product?

Where to buy

Designed to work with AURATON Aries

Designed to work with AURATON Fornax

3 independent temperatures (day, night, anti-freeze)

Heating or cooling operation mode

10 temperature programmes (7 user-modifiable)

LCD display adapted to work in dimly lit rooms

PWM working mode

The AURATON Libra R: A versatile wireless thermostat for heating systems

Wireless temperature controller for a furnace, boiler or underfloor heating. AURATON Libra R can be easily paired with the AURATON Fornax receiver or the AURATON Aries wireless underfloor heating control strip. This connection enables the use of a unique heating cycle algorithm that records the receiver's operating parameters for the last 24 hours. The controller is equipped with a PWM operating mode, which cyclically switches the heating device on and off, minimizing temperature fluctuations and maintaining optimal thermal comfort in the room while simultaneously reducing energy consumption.

Thermostat with a display

The controller offers 9 temperature programs that include three independent temperatures: day, night, and anti-freeze. The LCD display is adapted for use in poorly lit rooms, ensuring convenient operation in any lighting conditions. The ability to choose between heating and cooling modes makes AURATON Libra R an ideal solution for both winter and summer.

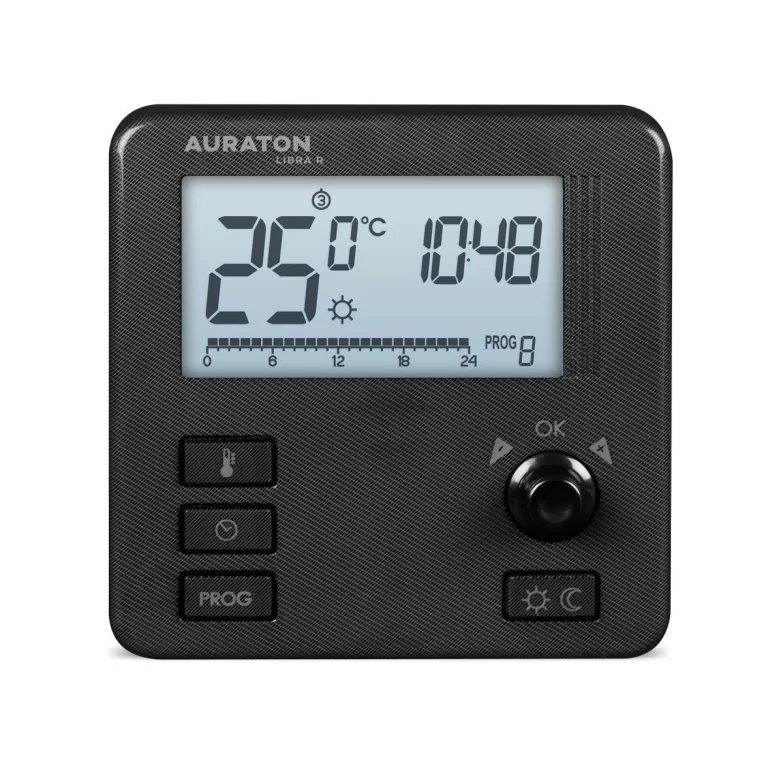

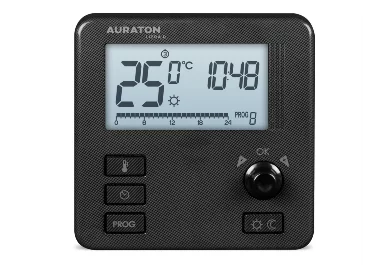

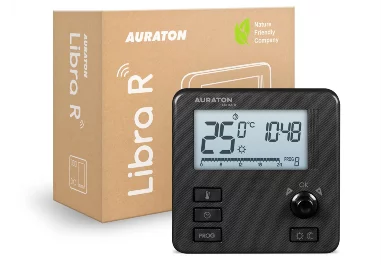

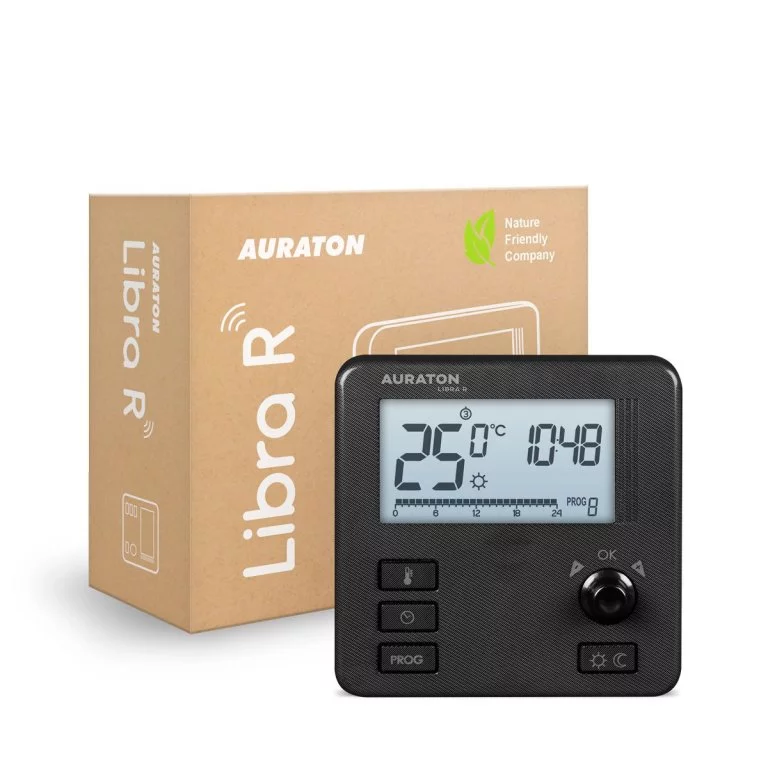

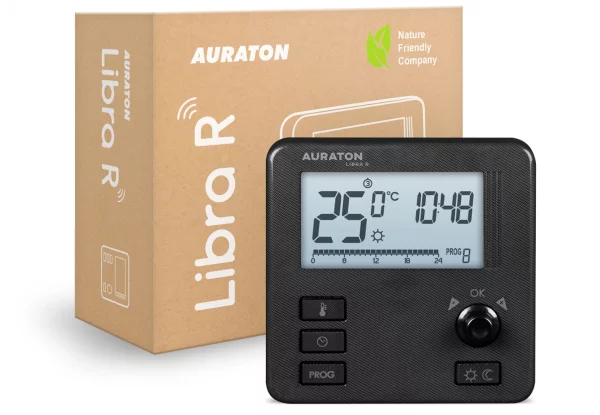

Black thermostat for advanced users

AURATON Libra R Carbon Edition features a new, unique design. The carbon fiber-like structure and graphite color give the device a modern and elegant look, while maintaining the same reliable functionality as the standard white version of the device.

Technical data

Power supply2xAAA (2x1.5V), alkaline
Operating temperature range0° – 45°C
Working status signallingLCD display
Radio frequency868.850 MHz | 869.000 MHz
Radio signal strengthup to 11 dBm
Operating rangein a typical building with a standard wall construction –
approx. 30 m; in an open space – up to 300 m
Number of temperature levels2
Anti-freeze temperature7°C
Temperature control range5 – 30°C
Hysteresis±0.2°C / ±0.4°C/PWM
Relay load capacitymax. 250V AC, max. 16A
Working cycleweekly programmable
Ingress protectionIP 20
Humidity≤85% non-condensing
