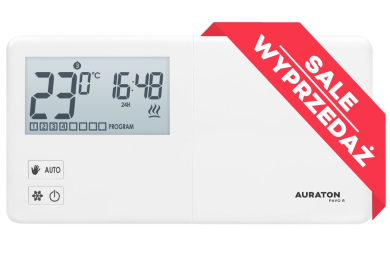

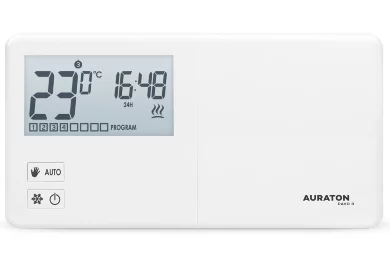

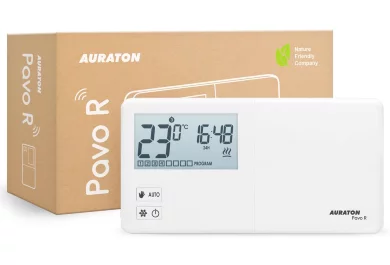

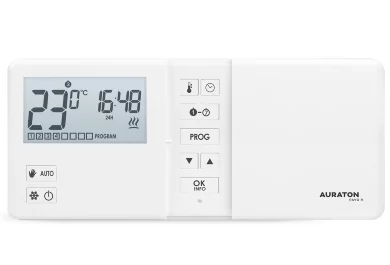

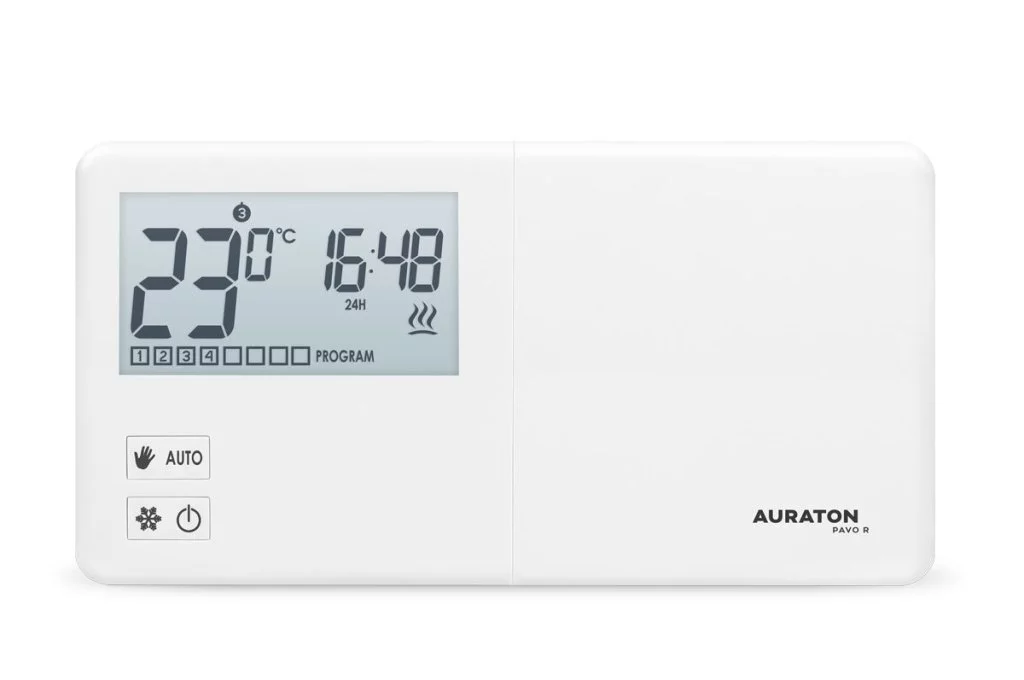

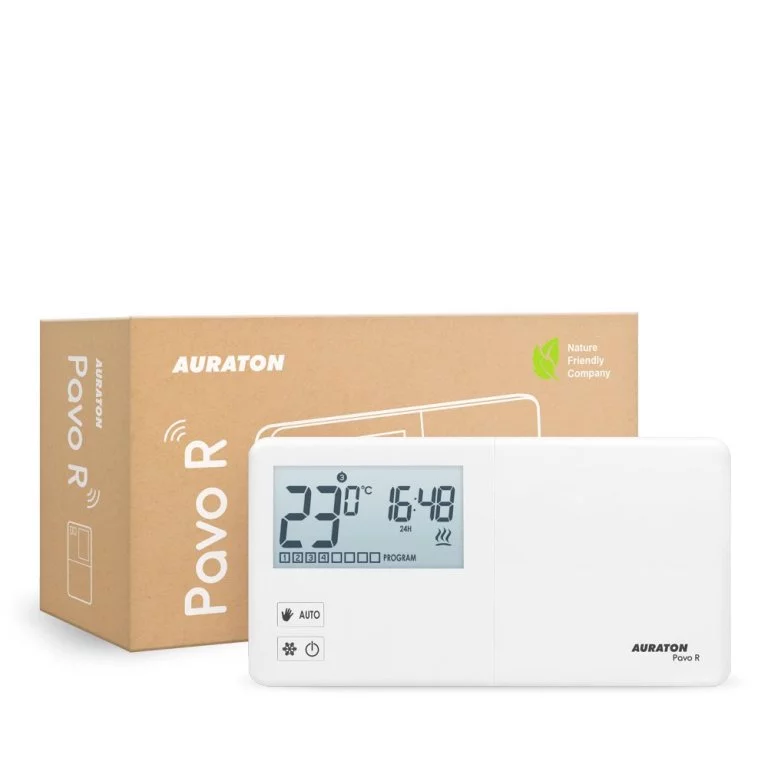

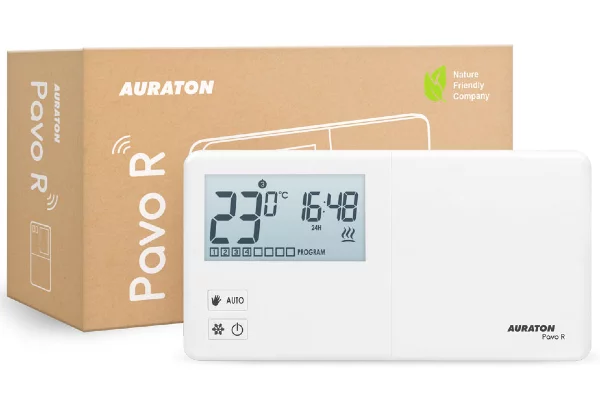

AURATON Pavo R

Weekly wireless thermostat (transmitter)

AURATON Pavo R (successor to AURATON 2030 R) is an advanced weekly, wireless temperature controller that offers users exceptional control over their heating system. Equipped with a heating device operating time counter, AURATON Pavo R enables precise management of 8 temperature programs for weekdays, 8 for Saturday and 8 for Sunday. This functionality allows for temperature adjustment to different times of day, ensuring optimal thermal comfort throughout the week. Additionally, AURATON Pavo R offers the possibility of setting an independent holiday temperature for up to 7 days and an anti-freeze temperature, adjustable from 4 to 10°C.

Are you interested in this product?

Where to buy

Designed to work with AURATON Aries

Designed to work with AURATON Fornax

Holiday mode: setting an independent temperature for up to 7 days

8 independent temperatures per day + holiday + anti-freeze

8 temperature programmes for weekdays, 8 for Saturdays and 8 for Sunday

Minute precision of temperature settings

PWM working mode

High-performance temperature controller with PWM

The thermostat is equipped with PWM (Pulse Width Modulation) mode, which minimizes temperature fluctuations by cyclically switching the heating device on and off. The PWM algorithm not only maintains stable thermal comfort in the room but also ensures minimal energy consumption by anticipating the behavior of the heating system.

Experience ultimate flexibility with the AURATON Pavo R

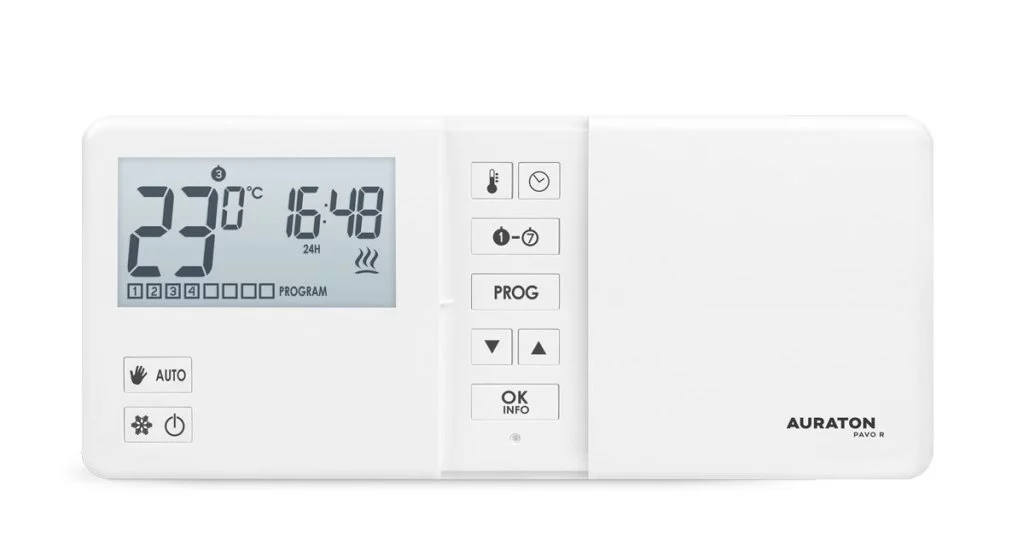

The LCD display in AURATON Pavo R is adapted for use in poorly lit rooms and offers the possibility of choosing from 3 backlight colors, which increases its functionality and ease of use. AURATON Pavo R acts as a radio transmitter and is dedicated to working with AURATON Fornax (receiver) and AURATON Aries (underfloor heating control strip), making it a versatile solution for various heating systems.

Technical data

Power supply2xAA (2x1.5V), alkaline
Operating temperature range0° – 45°C
Working status signallingLCD display
Radio frequency868.850 MHz | 869.000 MHz
Radio signal strengthup to 11 dBm
Operating rangein a typical building with a standard wall construction –
approx. 30 m; in an open space – up to 300 m
Number of temperature levels11
Number of programmes8 for weekdays, 8 for Saturday
and 8 for Sunday
Anti-freeze temperature4 – 10°C
Temperature control range5 – 30°C
Hysteresis±0.2°C / ±0.4°C/PWM
Relay load capacitymax. 250V AC, max. 16A
Working cycleweekly programmable
Ingress protectionIP 20
Humidity≤85% non-condensing
